Mikrotik RouterBOARD RB1100x4, RB1100AHx4

MikroTik platform system solution for PROviders of wireless Internet connections.

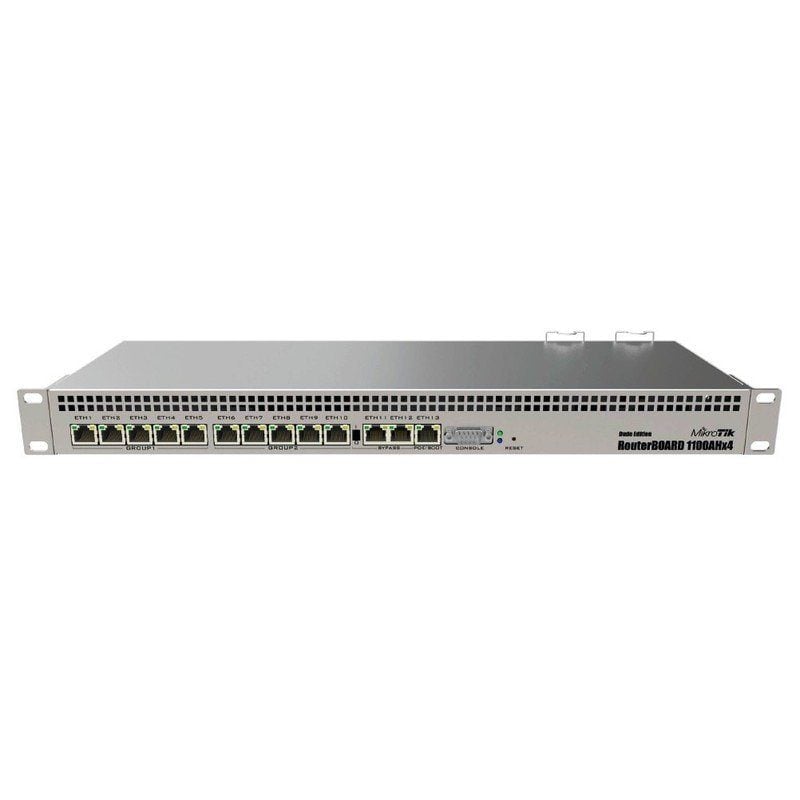

It is a gigabit routerboard in a rack version equipped with 13x RJ45 10/100/1000 Mbps MDI/MDI-X.

Activated ROS Level 6, SD card slot, RS232 serial port, delivery including 1U aluminum rack chassis and power supply.

Powered by the Annapurna Alpine AL21400 CPU with four Cortex A15 cores, each clocked at 1.4GHz and up to 7.5Gbit throughput.
RB supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

In addition to the redundant power supply, it also has a DC input and supports both passive and active PoE power supply in the 802.3at standard.

The RouterBoard can be further expanded with a microSD card, thanks to the integrated hardware accelerator it is ideal for IPsec tunnels.

Technical specifications:
DHCP: Yes
LAN ports: 13x 10/100/1000 Mbit/s Gigabit Ethernet, Auto-MDI/X
Default name: admin
Consumption (W): 25
PROcessor: PowerPC 4x 1400MHz with hardware encryption
NAND (MB): 128
Expansion: 1x micro SD card
I/O Control: Yes
LED indication: Yes
OS: RouterOS Level 6
IPv6 Support: Full
Height (mm): 47
Width (mm): 444
Depth (mm): 148
Power supply max (jack) (V): 2x 230, 57
Power min (PoE) (V): 20
Power supply max (PoE) (V): 57
Operating temperature min (°C): -20
Cooling: Passive (no fan)

Notice:
The manufacturer MIKROTIK does not PROvide a warranty for devices damaged by overvoltage.
The device must be adequately PROtected at the inputs against induced electrostatic overvoltage or overvoltage peaks on the power line.
For outdoor installations, shielded cabling (FTP/SFTP), apPROpriate surge PROtectors (if not integrated) and correct and effective grounding must be used.
