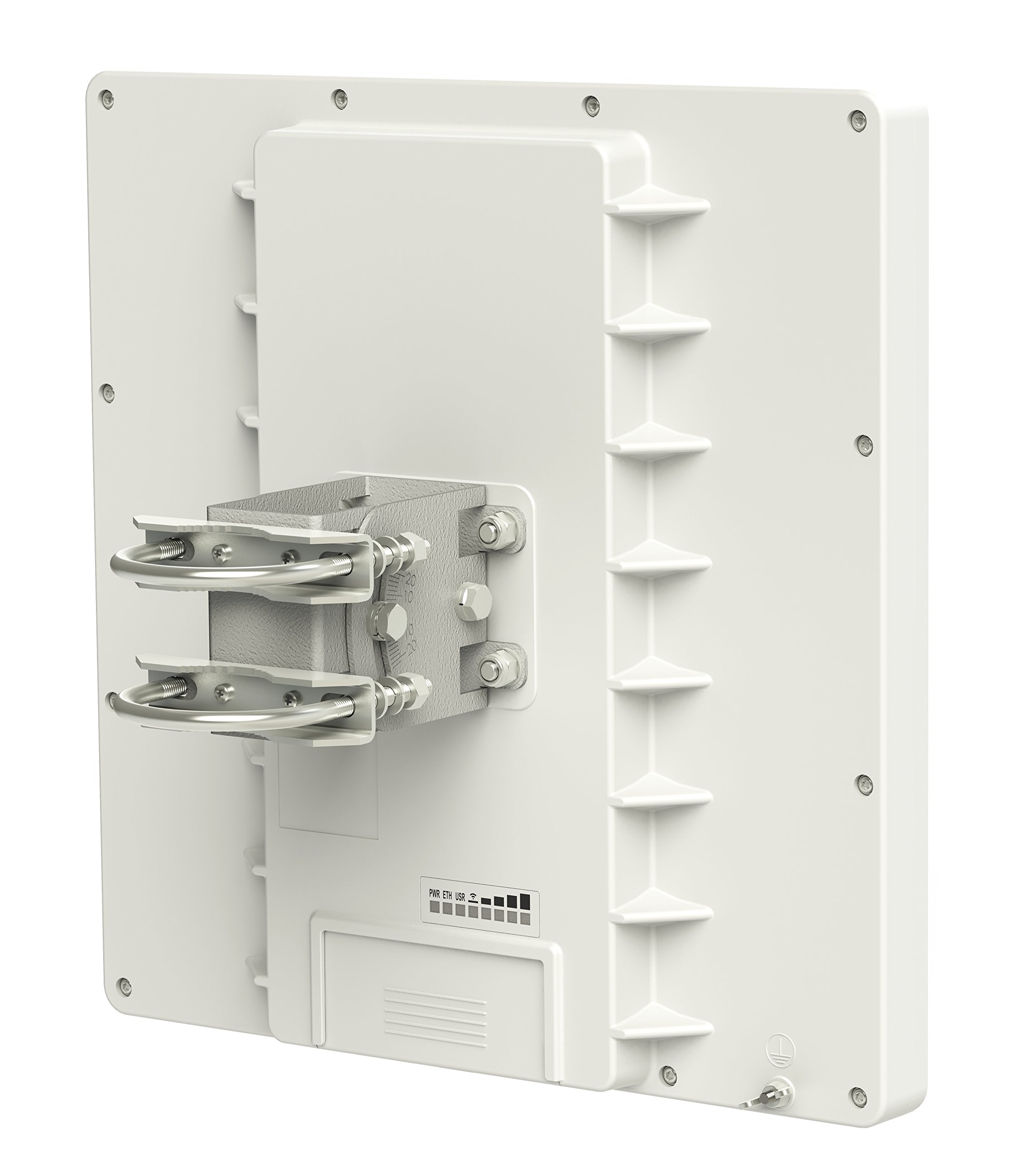

MikroTik RouterBoard QRT 5 Flat Panel Antenna RB911G-5HPnD-QRT

The MikroTik RouterBoard QRT 5 is a high-performance 5GHz wireless access point designed for professional networking deployments. Featuring a built-in flat panel antenna with 17dBi gain, it delivers extended range and improved signal strength for reliable connectivity. The RB911G-5HPnD-QRT combines RouterOS compatibility with robust hardware specifications, making it ideal for point-to-point links, outdoor installations, and enterprise-grade wireless solutions. Supports 802.11a/n standards with high-speed data transmission capabilities for demanding network environments.

• Rugged outdoor wireless unit with integrated 24 dBi flat panel antenna for long‑range 5GHz links.

• High‑performance AR9342 600 MHz CPU, 64 MB RAM, 128 MB flash.

• Single Gigabit Ethernet port with full support for high‑throughput applications.

• Supports passive PoE input from 8‑30 V, making outdoor installation easier.

• Efficient power use (~11‑12 W) and passive‑cooled (fanless) design for reliable outdoor deployment.

• License Level 4 with full RouterOS features for CPE/AP use.

• Weather‑resistant IP54 housing rated for –40 °C to +70 °C operation in harsh environments.

• Ideal for point‑to‑point or point‑to‑multipoint 5 GHz links with high gain antenna built in

• Architecture: MIPSBE

• CPU: AR9342, 1 core, 600 MHz

• RouterOS License: Level 4

• RAM: 64 MB

• Storage: 128 MB NAND flash

• MTBF: ~200,000 hours at 25 °C

• Ambient operating temperature: –40 °C to +70 °C

• Power input: Passive PoE 8‑30 V DC (1 input)

• Max power consumption: ~11‑12 W

• Wireless 5 GHz: 2‑chain, up to ~300 Mb/s, integrated 24 dBi antenna

• Ethernet port: 1 × Gigabit RJ‑45

• Certifications: CE, EAC, RoHS; IP54 rated for outdoor use

• Frequency range (international): 5150‑5875 MHz (subject to local regulation)

• Antenna gain: ~24 dBi; Beam widths ~10.5° H‑plane & ~10.5° E‑plane
