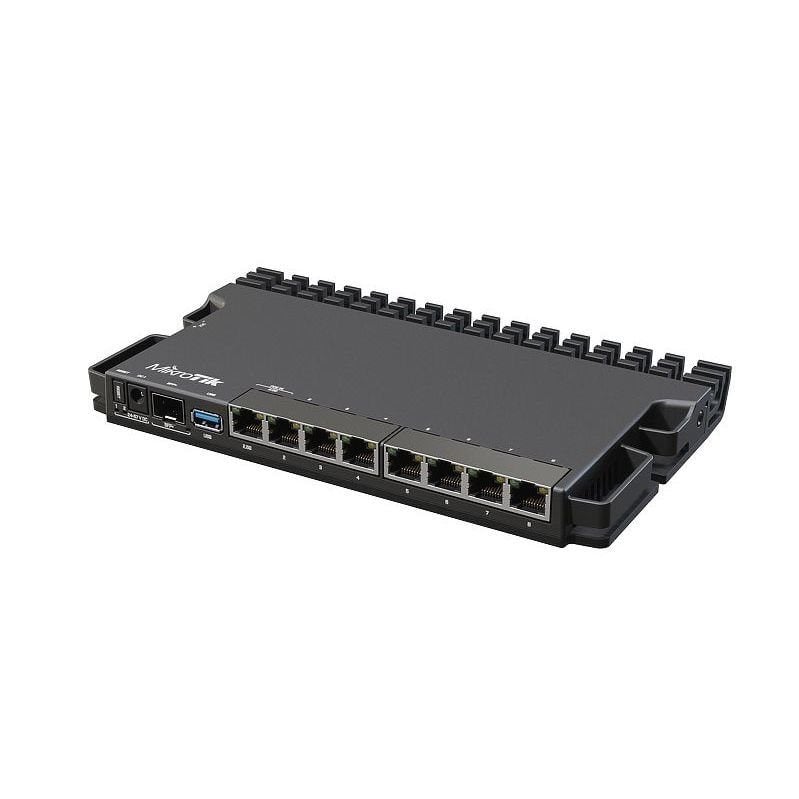

MikroTik RouterBOARD RB5009UG+S+IN

The new model RB5009UG+S+IN is declared by the manufacturer as feedback to users' requests from Mikrotik User Meetings for a powerful and robust home router.

The active element has nine metallic ports and a USB 3.0 port.
Seven ports are gigabit ethernet, one 2.5 gigabit ethernet and the last one is a 10G SFP+ slot.

All ports are connected to a powerful switch-chip from the Marvell Amethyst family and a 10Gbps full-duplex line to the Marvell Armada Quad-core ARMv8 1.4 GHz PROcessor.

The CPU and switch-chip are located on the bottom of the board, so the entire robust metal casefunctions as a massive passive cooler.

In addition to powering via an adapter or terminal block, the RouterBoard also supports active PoE+ powering according to the 802.3af/at standard.

Using the K-79 Rackmount Kit, a 1U set of four rackmount routers can easily be created.

MikroTik YouTube video: https://www.youtube.com/watch?v=c5kBvwGqGws&t=1shttps://iiyama.com_cs/PROdukty/ds1001c-b1/https://iiyama.com_cs/PROdukty/PROlite-le4341s-b2/

The active element integrates the following functions and features:
• 7x Gigabit Ethernet ports
• 1x 2.5 Gigabit Ethernet port
• 10G SFP+ slot
• USB 3.0 input
• Durable metal housing
• Powerful quad-core PROcessor
• 1 GB DDR4 RAM memory
• 1 GB NAND memory
• pre-designed for the RouterOS v7 operating system
• three-way power supply - PoE, DC input, terminal block

Technical Specifications:
PROduct code: RB5009UG+S+IN
CPU: 88F7040 1.4 GHz
CPU architecture: ARM 64bit
CPU core count: 4
Size of RAM: 1 GB
RAM type: DDR4
Storage: 1 GB, NAND
Number of 1G Ethernet ports: 7
Number of 2.5G Ethernet ports: 1
Number of 10G SFP+ ports: 1
USB port: 1 (3.0 type A)
Operating system: RouterOS (License level 5)
Switch chip model: 88E6393
Dimensions: 220 x 125 x 22 mm
Operating temperature: -40°C to +60°C
PoE-in: 802.3af/at
Number of DC inputs: 3
Supported input voltage: 24-57 V (PoE in) 24-57 V (DC jack) 24-57 (2-pin terminal)
Power adapter nominal voltage: 24 V
Power adapter nominal current: 1.5 A
Max power consumption (without attachments): 14 W
Max power consumption: 20 W

Notice:
SFP+ port functional only with active DACs (Direct Attach Cables).
E.g. MikroTik S+DA0001/S+DA0003 passive DACs are not supported.

Notice:
The manufacturer MIKROTIK does not PROvide a warranty for devices damaged by overvoltage.
The device must be adequately PROtected at the inputs against induced electrostatic overvoltage or overvoltage peaks on the power line.
For outdoor installations, shielded cabling (FTP/SFTP), apPROpriate surge PROtectors (if not integrated) and correct and effective grounding must be used.

Always operate the device with the latest version published by the manufacturer (labeled "Stable" by the manufacturer) of the RouterOS operating system.
Such a version guarantees the most optimal functionality, contains fixed errors from previous versions and performance imPROvements
