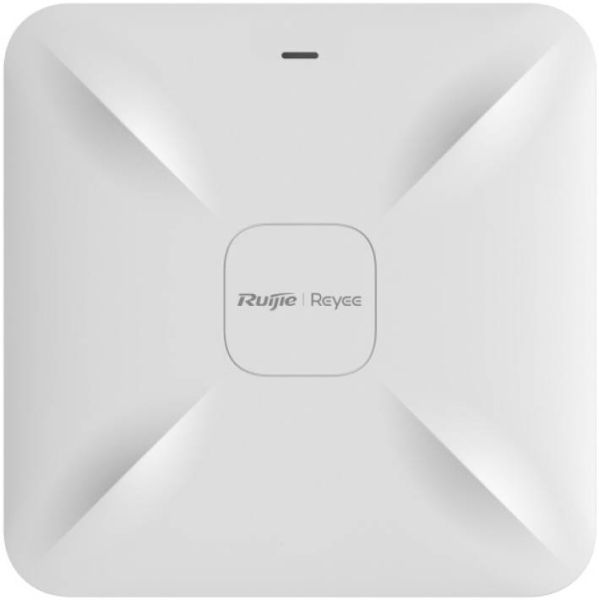

Ruijie Reyee RG-RAP2200(E) Wi-Fi 5 AC1300 Dual Band Ceiling Access Point

The Ruijie Reyee RG-RAP2200(E) delivers enterprise-grade Wi-Fi 5 performance in a compact ceiling-mount design. With AC1300 dual-band coverage, this access point combines 802.11ac technology with intelligent band steering to optimize network efficiency across 2.4GHz and 5GHz frequencies. Built for professional deployments, it features robust security protocols, seamless roaming capabilities, and centralized management support. The discreet form factor integrates seamlessly into modern office environments while maintaining reliable connectivity for demanding business applications. Ideal for medium-sized venues requiring consistent, high-performance wireless coverage.

• High-performance ceiling-mount WiFi 5 (AC1300) access point with up to ~1.267 Gbps aggregate wireless speed.

• Dual-band operation (2.4 GHz + 5 GHz) with 2×2 MIMO architecture for each band.

• Two Gigabit Ethernet ports for uplink/backhaul flexibility.

• Supports PoE (802.3af/at) for easy installation without separate power adapter.

• Compact size (194 × 194 × 35 mm) and lightweight (~0.45 kg) for unobtrusive ceiling or wall deployment.

• Designed for dense client environments: supports ~110 users on 5GHz and cloud/manageability features.

• Built-in antennas ensure sleek installation; supported mounting hardware included.

• Robust for commercial/enterprise use: supports 0-40 °C operating temp, non-condensing humidity, and cloud-based management.

• Wireless standard: WiFi 5 (IEEE 802.11ac Wave2 / Wave1) + 802.11a/b/g/n

• Bands: 2.4 GHz (~2.4 GHz–2.4835 GHz) and 5 GHz (~5.150–5.350 GHz / 5.725–5.850 GHz)

• Spatial streams: 2×2 MIMO (2.4 GHz) & 2×2 MIMO (5 GHz)

• Maximum wireless throughput: Up to ~400 Mbps (2.4GHz); up to ~867 Mbps (5GHz); aggregate ~1.267 Gbps per AP

• Ethernet ports: 2 × Gigabit (10/100/1000 Base-T)

• Power options: PoE (IEEE 802.3af/802.3at) or DC 12 V/1.5 A adapter; Maximum power consumption ≤ 12.95 W

• Operating temperature: 0 °C to 40 °C

• Storage temperature: -40 °C to 70 °C

• Operating humidity: 5% to 95% non-condensing

• Mounting: Ceiling or wall mount

• Antennas: Built-in omnidirectional (2dBi at 2.4GHz & 2dBi at 5GHz)

• Management/features: Cloud managed via Ruijie Cloud; supports many clients (~110 on 5GHz)
