Ubiquiti AF60-LR, airFiber 60 LR

Ubiquiti AF60-LR, airFiber 60 LR is an improved/higher performance version of Ubiquiti 60GHz (57 to 71GHz) link with Wave technology for long distance data transmission.

It is a Gigabit PTP 60GHz solution for a distance of up to 12km with the option of setting both the classic bandwidth of 2160MHz and the half-width of 1080MHz for a maximum transmission speed of 1.8Gb/s.

Equipment and construction

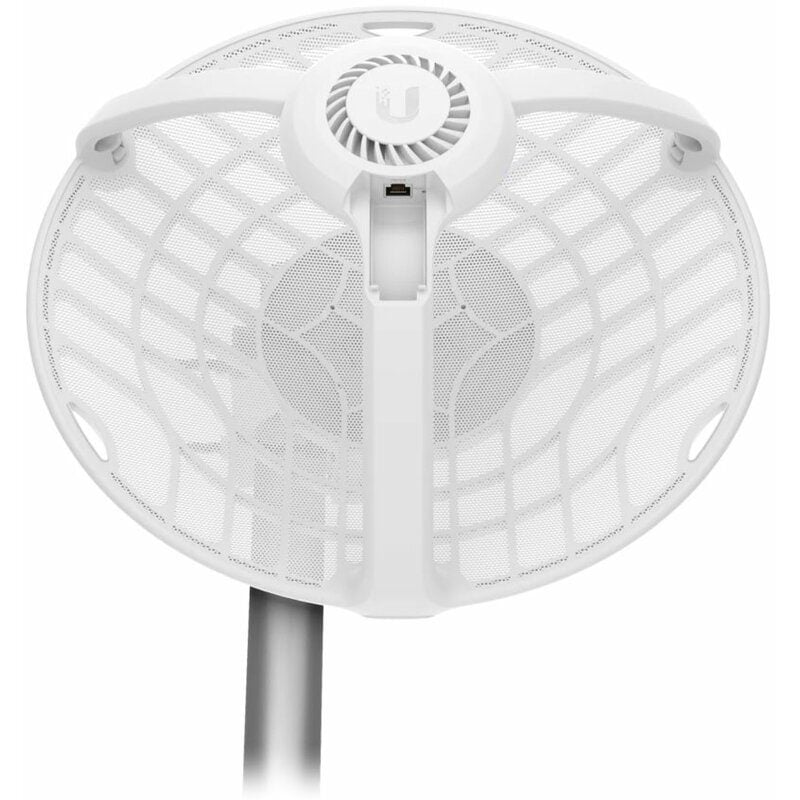

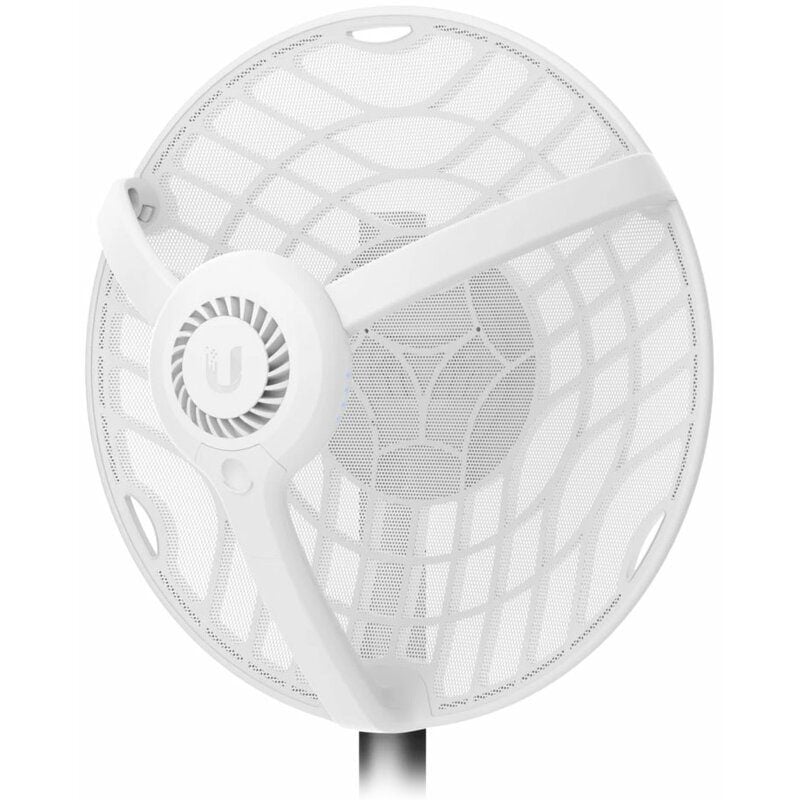

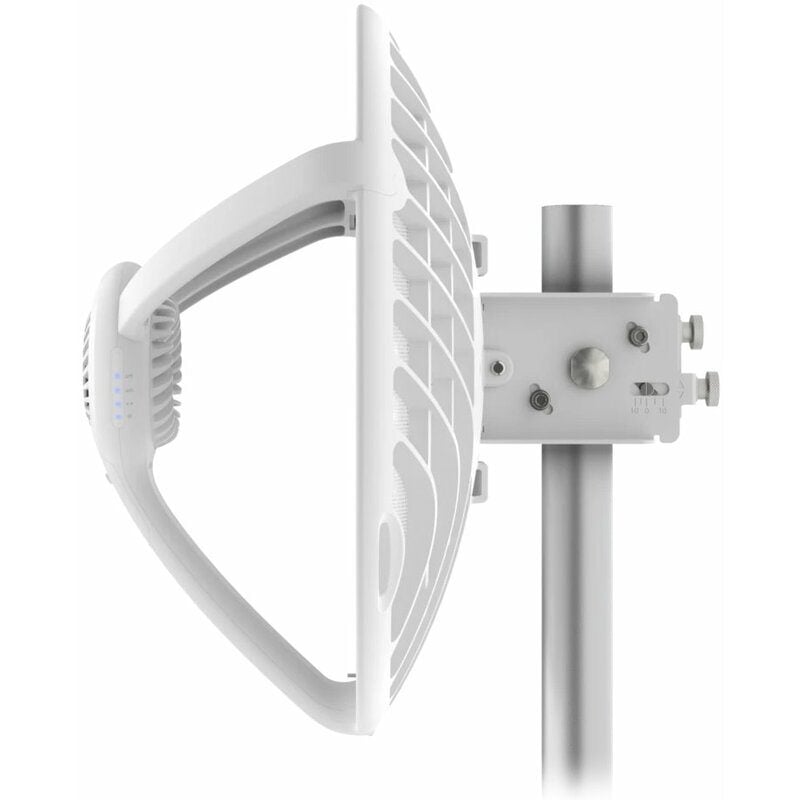

The AirFiber 60 LR is a very robust unit including a metal precision bracket, mesh parabolic antenna with 38dBi gain and 3 plastic feet holding the radiator, which includes a 60GHz radio unit with a Gigabit Ethernet port supporting a passive 48V power supply and a GPS module.
The unit also includes Bluetooth for quick setup via the UISP mobile app.

Package contents

• device
• mast holder
• Gigabit PoE power adapter 48V/0.65A
• power cable
• radome cover

Technical parameters

• Channel width [MHz]: 1080, 2160
• Transmit Power 60GHz [dBm]: 21
• Antenna gain [dBi]: 38
• LAN speed: (1) 10/100/1000Mbps
• Power supply via PoE: 48V DC
• Power type: PoE
• Max. power consumption [W]: 18
• Designed for mast diameter [mm]: 28 to 50
• Operating temperature [°C]: -40 to 60
• Weight [g]: 2700
• Depth [mm]: 360
• Width [mm]: 413
• Height [mm]: 413
• Operating system: airOS GP
• Default IP address: 192.168.1.20, Dynamic from DHCP
• Default username and password: Ubiquiti/Ubiquiti
