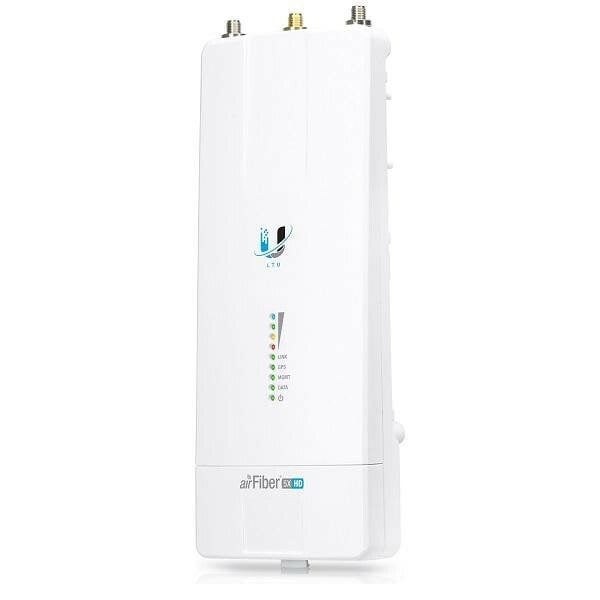

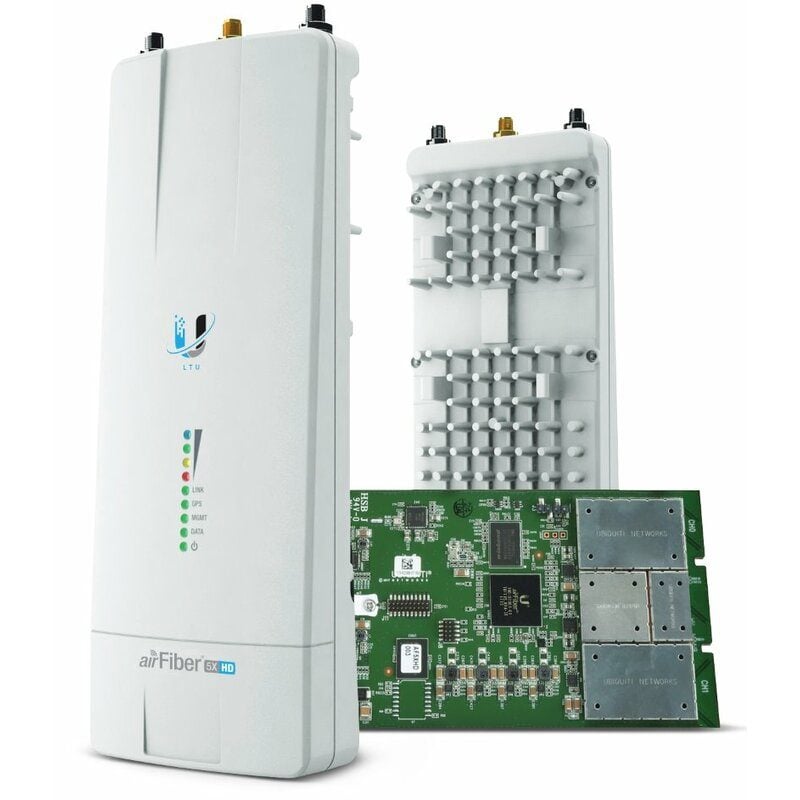

The AF-5XHD is currently the most powerful and best equipped airFiber device from Ubiquiti Networks.
The revolutionary airFiber LTU IC processor can process over 2 million+ packets per second at 1Gbps+ (TDD) real data flow in the unlicensed 5GHz band at 1024QAM (up to 4096QAM with even higher throughput is expected to be supported in the planned firmware).
Other key features include 2x Gigabit LAN, where one port is only for management, time synchronization via GPS, dedicated spectrum analyzer, high water resistance (IP67) and adjustable channel width 10/20/30/40/50/60 /80 and 100MHz.
IP67 resistance
The AirFiber 5XHD is water resistant thanks to its very good construction and the included rubber adapter, making it ideal for any weather conditions.
Package contents
Technical parameters
Wireless features
Sensitivity [dBm]: -90
Frequency range [MHz]: 4800-6200
Maximum modulation: 1024QAM
Wireless frequency: 5GHz
WiFi transmission speed - 5GHz [Mb/s]: 1000
5GHz Transmit Power [dBm]: 29
Encryption: WPA2 AES
5GHz OUT: 2x2
Antenna type: Detachable
Number of removable antennas: 2
Physical characteristics
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 to 55
Weight [g]: 350
Depth [mm]: 48
Width [mm]: 82
Height [mm]: 224
Hardware
CPU: airFiber LTU IC
Connectors and interfaces
RF connectors: (1) SMA female, (2) RSMA female
LAN speeds: (1) 10/100/1000Mbps + (1)10/100/1000Mbps (management)
Gigabit LAN: Yes
GPS module: Yes
Power supply
Max. power consumption [W]: 12
Power supply via PoE: 24 .. 50V DC
PoE types: Input
| LAN max. Speed [Mb/s] | 1000 mb/s |
|---|---|
| Wi-Fi max. Speed (mb/s) | 1000 mb/s |
| Optical | No |
| LAN ports | 1 |
| POE | Yes |
|---|---|
| Application | Outdoor |
| External Antenna | 1 |
| Nr. of pcs in package | 1 |
|---|---|
| Weight (kg) | 1.267 |
| Dimensions (cm) | 21.7x26.3x11.1 |
| Width(cm) | 21.7 |
|---|---|
| Height(cm) | 26.3 |
| Length (cm) | 11.1 |
