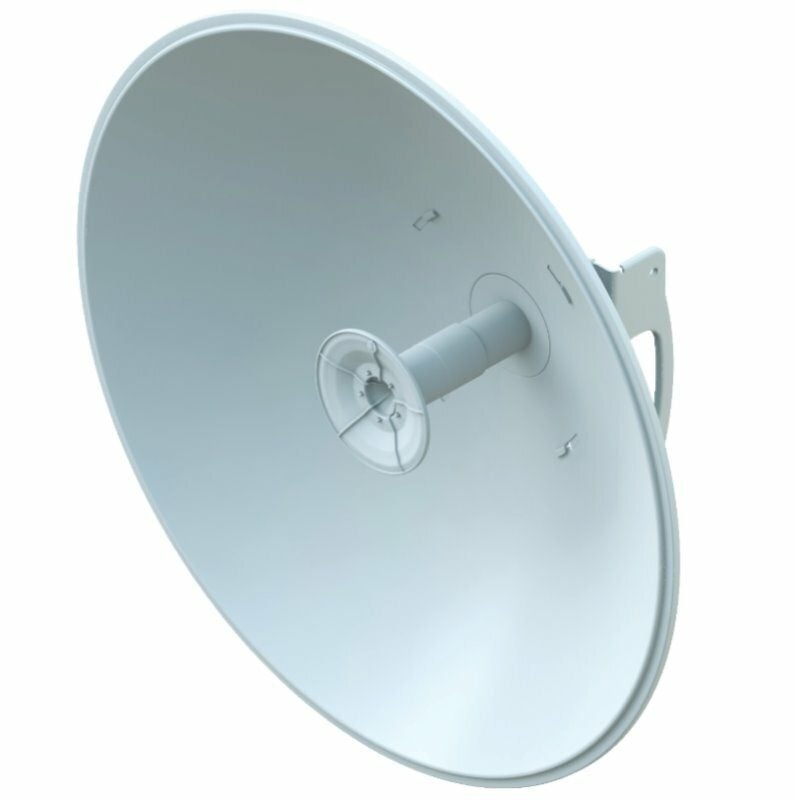

Ubiquiti airFiber Dish 30dBi, 5GHz, Slant 45

We would like to introduce to you a revolutionary 5GHz antenna called AF-5G30-S45 with dual X polarization rotated by 45° from the standard dual HV polarization, making it more robust in noisy environments than ever before.
This 30dBi antenna with a diameter of 650mm is custom made for direct pairing with the AF-5X product.

Improved anti-jamming design
Improved RF isolation and reduced interference have been achieved using the innovative design. Thanks to this, a higher capacity of your connections can be achieved.

Built-in Rocket kit
Thanks to the built-in mounting system of the so-called rocketkit, it is possible to directly mount any Rocket unit on this antenna without the need to install additional accessories. Simply snap the Rocket unit in place and you're done.
For proper functionality, this antenna is primarily intended for airFiber X units due to its 45° rotated polarization.

Package contents:

• (1) Antenna
• (1) Antenna radiator
• (1) Protective cover per unit
• (2) RSMA male - RSMA male pigtail
• (1) Mounting bracket + screws

Technical parameters

Wireless features
Isolation between connectors [dB]: 35
OUTSIDE, SISO: 2x2 (slant - rotated 45°)
Polarization: VH (slant)
Front-to-back ratio [dB]: 30
VSWR: <1.6
Wireless frequency: 5GHz
Radiate. angle in the azimuth plane (-6dB) [°]: 6
Radiate. angle in elevation plane (-6dB) [°]: 6
Antenna type: Directional
Antenna gain [dBi]: 30

Physical characteristics
Antenna construction: Parabolic
Wind resistance [km/h]: 200
Use: Outdoor
Weight [kg]: 7.4
Depth [mm]: 386
Width [mm]: 650
Height [mm]: 650
