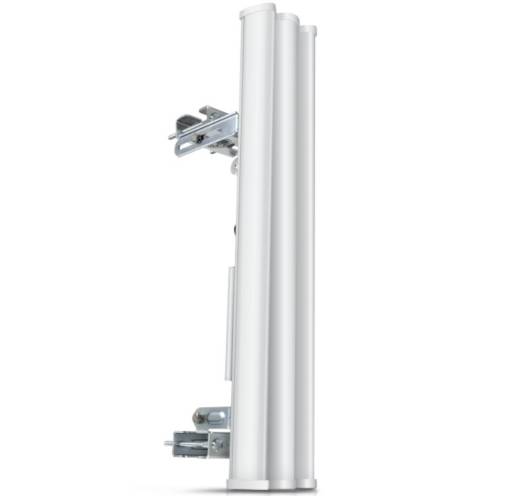

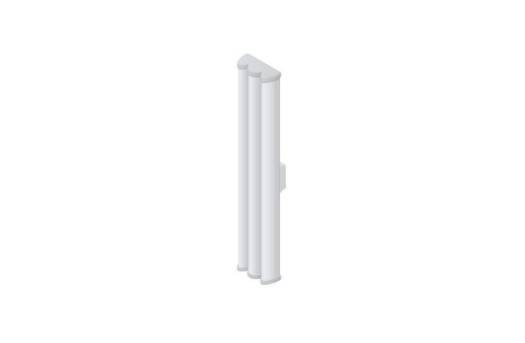

Ubiquiti sector.antenna 5GHz MIMO 19dBi 120° rocket kit

Ubiquiti sector antenna engineered for high-performance 5GHz wireless deployments. This MIMO antenna delivers 19dBi gain with a 120° sector coverage pattern, ideal for point-to-multipoint networks requiring extended range and directional focus. Compatible with Rocket M5 and similar platforms, it provides superior signal concentration across wider coverage areas while minimizing interference from adjacent sectors. Built to professional-grade standards for reliable outdoor installations in enterprise and ISP applications.

Dual polarization sector antenna suitable for Rocket M5 unit (MIMO).
It uses both horizontal and vertical polarization, thus replacing two separate antennas and can easily create, for example, an access point with high throughput.
Accessories for installation and waterproof connection with the Rocket M5 unit are supplied with the antenna.

SPECIFICATIONS
Frequency: 5.15-5.85GHz
Polarization: OFF
Gain: 19dBi
Beam angles (H/V): 120°/4°
Connector: 2x RSMA female
RF cable length: -
VSWR: <1.5
Impedance: 50 ohms
Front-back ratio: >30dB
Dimensions: 700x145x79mm
Weight: 5.9 kg
Mounting kit for mast: diameter 30-80mm

Package contents:

• antenna
• holder
• sleeve
• rocket kit
