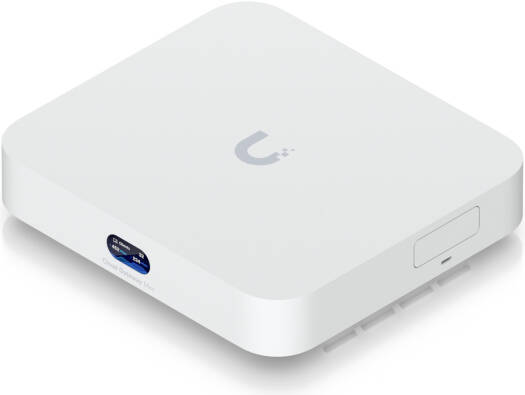

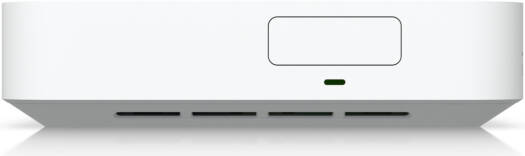

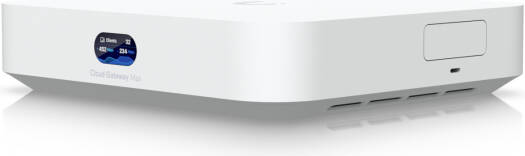

The Ubiquiti Cloud Gateway Max (UCG-MAX) is an enterprise-grade unified security gateway designed for organizations requiring advanced threat protection and network management. This powerful appliance delivers comprehensive firewall capabilities, intrusion detection and prevention, and deep packet inspection to safeguard your network infrastructure. With cloud-based management through Ubiquiti's UniFi platform, you gain centralized control and real-time visibility across your entire network. The UCG-MAX supports high-throughput processing, making it ideal for medium to large deployments. Its robust architecture ensures reliable performance while maintaining low latency, enabling seamless integration into existing network environments. Perfect for businesses prioritizing security without compromising operational efficiency.
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 30+ |
| Managed Cameras | 15 HD, 8 2K, 5 4K |
| Simultaneous Users | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |

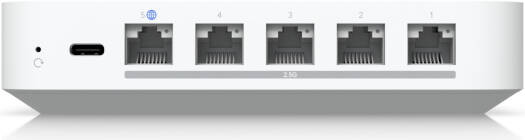

| Port Layout | (5) 2.5 GbE RJ45 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | Yes |
| Layer 7 Firewall | Yes |
| DPI & Traffic ID | Yes |
| Zone-Based Firewall | Yes (Regions, Domains, Apps) |
| Content Filtering | Yes |
| IPS/IDS | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 55,000+ with CyberSecure |
| VLAN/Subnet Segmentation | Yes |
| VPN & SD-WAN | |
| License-Free SD-WAN | Yes |
| Site-to-Site VPN | Site Magic, IPsec, OpenVPN |
| VPN Server | Identity Endpoint VPN, Teleport, WireGuard, OpenVPN, L2TP |
| VPN Client | OpenVPN, WireGuard |
| Networking | |
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing | OSPF |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT | Yes (SNAT, DNAT, Masquerade, Pooling, 1-to-1 NAT) |
| Integrated RADIUS Server | Yes |
| RADIUS over TLS (RadSec) | Yes |
| UniFi LTE Backup | Yes |
| Internet Quality Reports | Yes |
| MAC Address Table Size | 2,000 |
| Policy-based Routing | WAN and VPN |
| Custom DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| Hardware | |
| NVR Storage | Selectable NVMe SSD up to 2 TB |
| Max Power Consumption | 16.1W |
| Power Method | USB Type-C (5V DC/5A) |
| Power Supply | USB Type-C (5V DC/5A) Adapter included |
| Voltage Range | 100–240V AC |
| Processor | Quad-core ARM Cortex-A53 @ 1.5 GHz |
| System Memory | 3 GB |
| Weight | 460 g (1 lb) without SSD519 g (1.1 lb) with SSD |
| Enclosure Material | Polycarbonate |

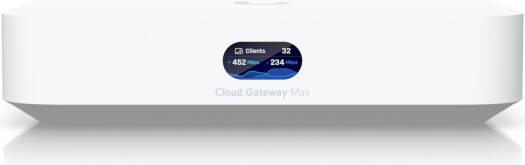

| LCM Display | 0.96" status screen |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet |
