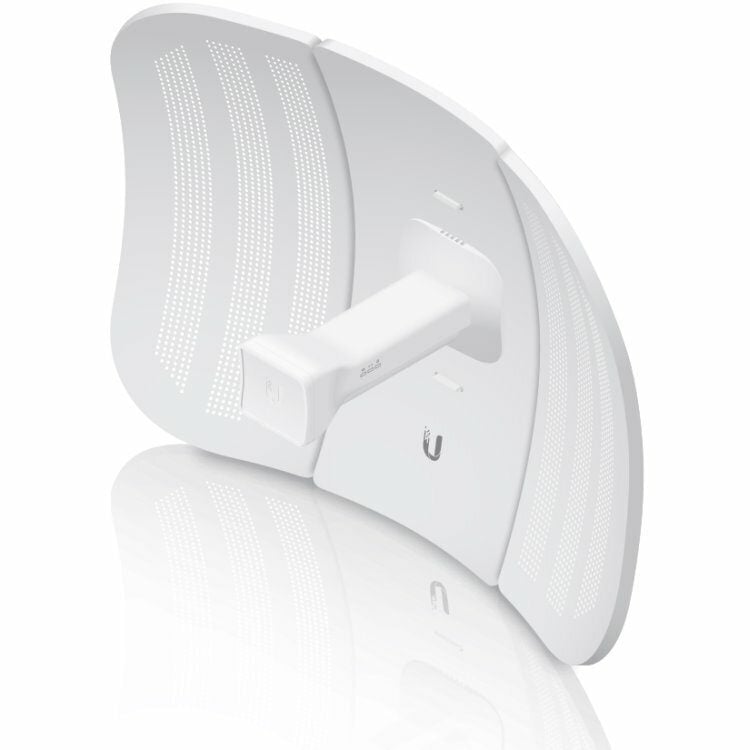

Ubiquiti LiteBeam LBE-M5-23

LiteBeam M5-23 is the newest and cheapest client unit (from version 5.6.3 it can also use AP mode) made of light and compact materials.
The unit has been designed for the best price/performance ratio in the 5GHz band.

The worldwide license-free 5GHz band allows transfer speeds of up to 150Mbps and an incredible range of up to 30+km.

The LiteBeam M5-23 combines proprietary hardware and software technologies into an affordable device.

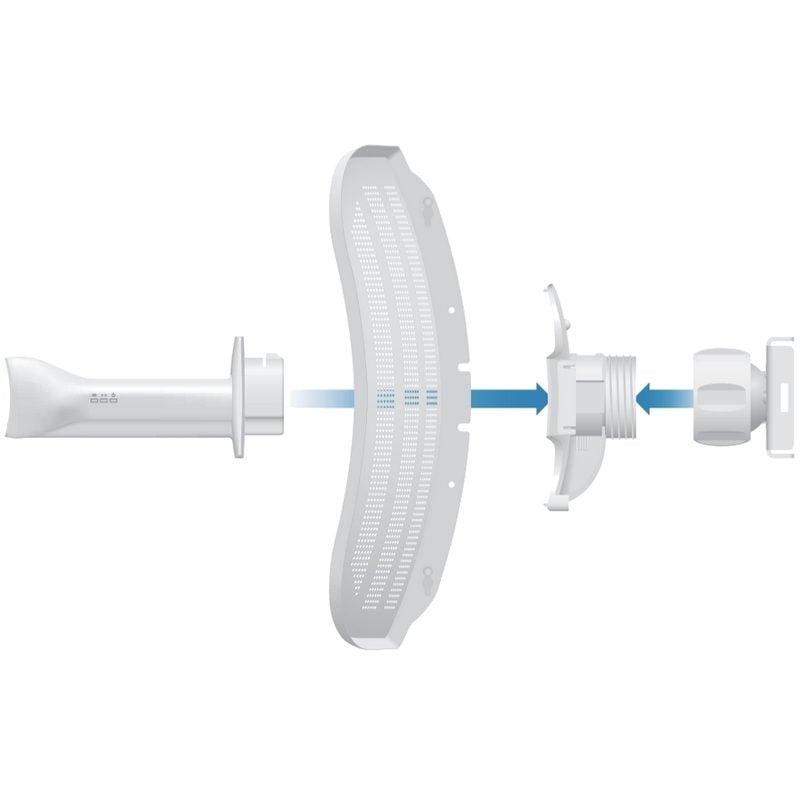

Among the advantages are InnerFeed technology, AirMAX TDMA protocol and a 3-axis flexible holder with a built-in spirit level enabling very fast and correct deployment.

The biggest advantage of any airMAX device is, in addition to the high transmission speed thanks to the 802.11n standard, the use of TDMA time multiplex.
The airMAX TDMA protocol enables excellent scalability and high throughput while maintaining low latencies in PtMP networks.

Package contents

• device
• antenna
• antenna holder
• PoE power supply
• power cable
• metal drawstring

Technical parameters

Wireless features
Wireless frequency: 5GHz
WiFi standards: airMAX, 802.11a, 802.11n
WiFi transmission speed - 5GHz [Mb/s]: 150
2.4GHz transmit power [dBm]: 25
Encryption: WPA2 AES
5GHz OUT: 1x1 SISO
Antenna type: Built-in
Number of built-in antennas: 1
Antenna gain [dBi]: 23

Physical characteristics
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 to 70
Weight [g]: 750
Depth [mm]: 184
Width [mm]: 362
Height [mm]: 267

Hardware
RAM [MB]: 64
CPU: MIPS 74KC
CPU frequency [MHz]: 560

Connectors and interfaces
LAN speeds: (1) 10/100Mbps

Power supply
Power supply via PoE: 24V DC
PoE types: PoE-In (only)
Max. power consumption [W]: 4
