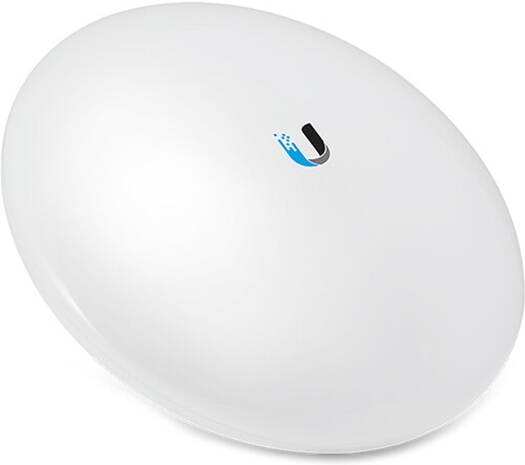

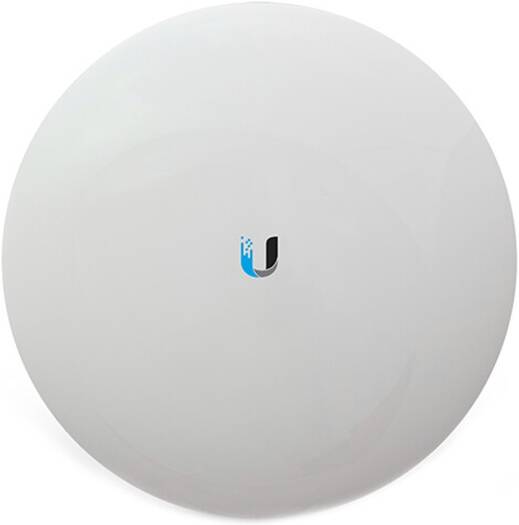

Ubiquiti NanoBeam NBE-5AC-Gen2, 19dBi

NBE-5AC-GEN2 is an improved client 19dBi station of the AC series of the second generation, which achieves very high transmission speeds and a stable connection even in noisy environments. The unit is designed for outdoor use.
Thanks to the possible setting of the channel width of 10/20/30/40/50/60 and 80MHz, a real throughput of up to 450Mbps+ can be achieved when using 256QAM.

Inside the NanoBeam is a powerful Atheros 74KC MIPS processor with a frequency of 720MHz, which is supported by 128MB of DDR2 type operating memory and 8MB of Flash memory. The unit includes 1 network port supporting 10/100/1000 Ethernet.
After the first port, the unit can be powered using passive Gigabit 24V/0.5A POE, which is included in the package (active PoE according to 802.3af is not supported).

Technicians will certainly appreciate the newly included 2.4GHz WiFi interface, which is used for administration via a mobile device. The UMOBILE app is available for both Android and iOS.

uMobile
The new airOS 8 operating system is also new for all Gen2 products with the airMAX ac protocol. This system, for example, renders the constellation diagram and the SNR value in real time.

Package contents:

• device
• Gigabit PoE power adapter 24V/0.5A
• power cable
• strapping tape
• plastic joint + plastic lock

Technical parameters

Wireless features
Wireless frequency: 5GHz
WiFi standards: airMAX ac
WiFi transmission speed - 5GHz [Mb/s]: 866
5GHz transmit power [dBm]: 25
Encryption: WPA2 AES
5GHz OUT: 2x2
Antenna type: Built-in
Number of built-in antennas: 2
Antenna gain [dBi]: 19

Physical characteristics
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 to 80
Weight [g]: 530
Depth [mm]: 125
Width [mm]: 189
Height [mm]: 189

Hardware
RAM size [MB]: 128
CPU: Atheros MIPS 74KC
CPU frequency [MHz]: 720

Connectors and interfaces

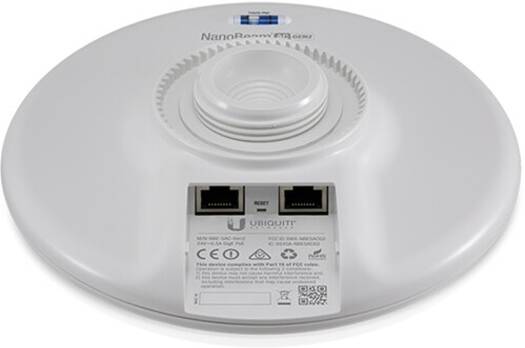

LAN Speeds: (1) 10/100/1000Mbps
Gigabit LAN: Yes
Others: WiFi management radio

Power supply
Max. power consumption [W]: 8.5
Power supply via PoE: 24V DC
PoE types: PoE-In only
