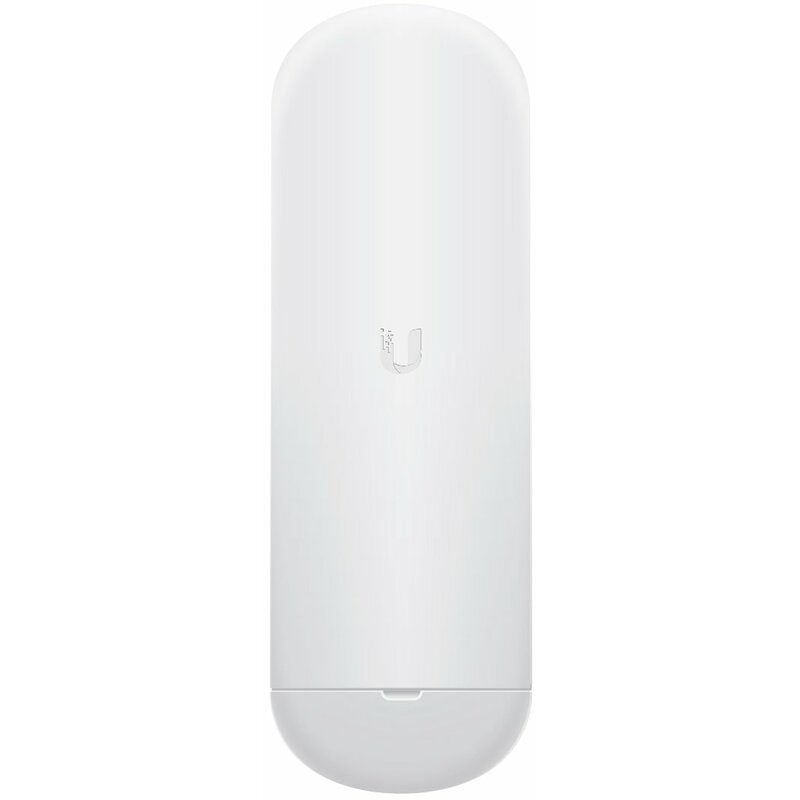

Ubiquiti NanoStation 5AC

NanoStation 5AC is a very discreet 16dBi client station of the airMAX ac series, which achieves very high transmission speeds and a stable connection even in noisy environments. The unit is only compatible with other airMAX ac products and is intended for outdoor use.
Thanks to the possible setting of the channel width of 10/20/30/40/50/60 and 80MHz, a real throughput of up to 450Mbps+ can be achieved with 256QAM modulation.

2.4G radio management
Technicians will certainly appreciate the newly included 2.4GHz WiFi interface, which is used for administration via a mobile device. The UMOBILE app is available for both Android and iOS.

Power supply
The NS-5AC can be powered both via passive 24VPoE and via active PoE 802.3af. In addition to data, the second port can also transmit passive power, which has the same voltage as the NS-5AC device.

Software
A new feature of airMAX ac products is the airOS 8 operating system. This system, for example, renders the constellation diagram and the SNR value in real time.

Package contents

• device
• PoE gigabit power adapter 24V/0.5A
• power cable
• screws + wall bracket
• tightening plastic tape

Technical parameters

Wireless features
Wireless frequency: 5GHz
WiFi transmission speed - 5GHz [Mb/s]: 866
WiFi standards: airMAX ac
5GHz transmit power [dBm]: 25
Encryption: WPA2 AES
5GHz OUT: 2x2
Beam angle - H. pole [°]: 45
Beam angle - V. pole [°]: 45
Antenna type: Built-in
Number of built-in antennas: 2
Antenna gain [dBi]: 13

Physical characteristics
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 to 70
Weight [g]: 180
Depth [mm]: 59
Width [mm]: 78
Height [mm]: 179

Hardware
Operating memory size [MB]: 64
CPU: Atheros MIPS 74KC
CPU frequency [MHz]: 560

Connectors and interfaces
LAN Speeds: (2) 10/100/1000Mbps
Gigabit LAN: Yes

Power supply
Max. power consumption [W]: 8.5
Power supply via PoE: 802.3af, 24V DC
PoE types: Input and output
