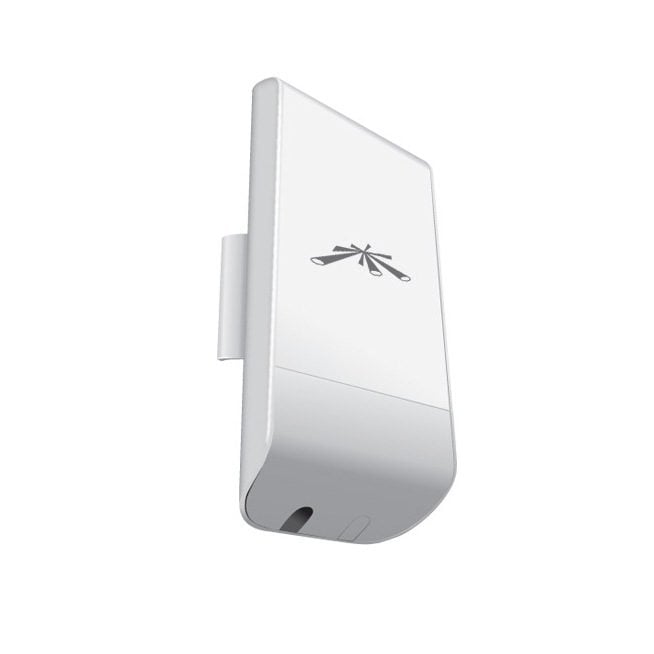

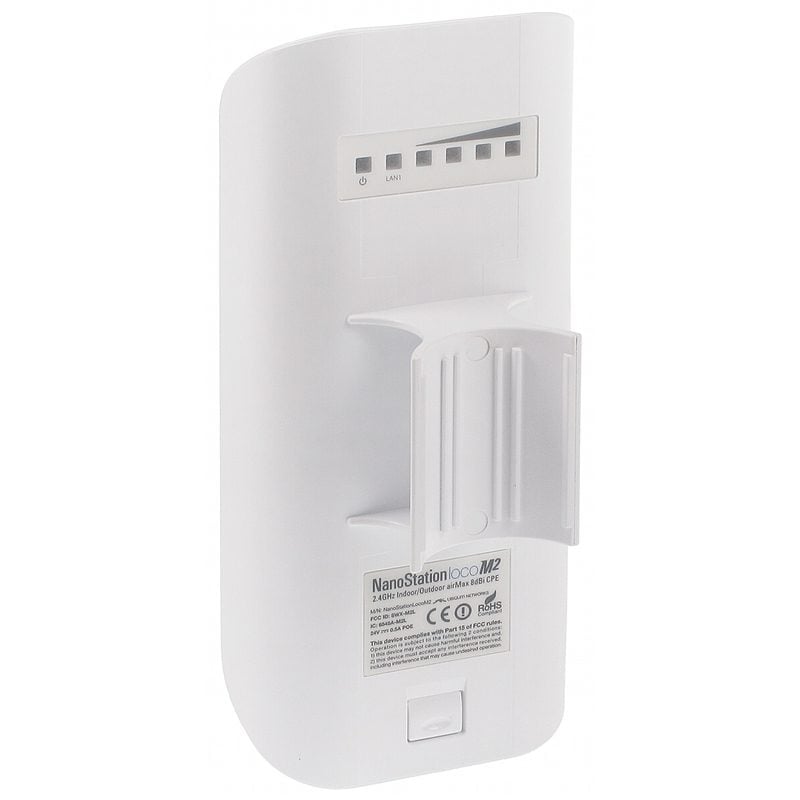

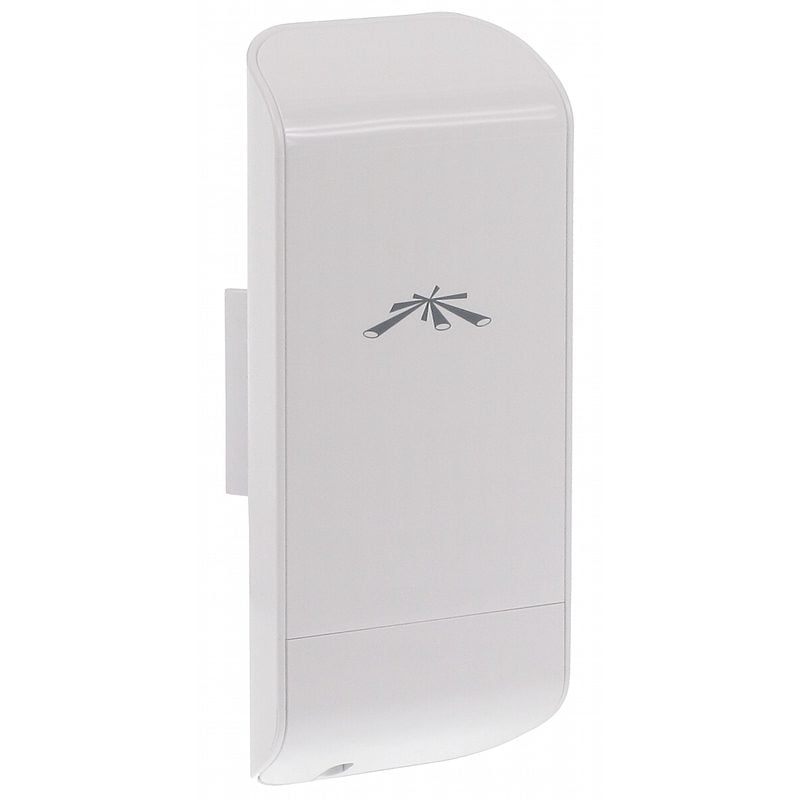

Ubiquiti NanoStation Loco M2 2x8dBi outdoor 2.4GHz

The Ubiquiti NanoStation Loco M2 delivers reliable long-range wireless connectivity for outdoor deployments. Operating on the 2.4GHz band, this compact access point features dual 8dBi antennas that provide excellent directional coverage and extended range. Built for harsh environments, it offers robust performance for point-to-point links, remote site connectivity, and outdoor network expansion. The weatherproof design ensures durability in demanding conditions, while its low power consumption makes it ideal for remote installations. Perfect for ISPs, enterprises, and network professionals seeking cost-effective outdoor wireless solutions.

NanoStation M2 Loco is a compact outdoor unit including 2x 8 dBi antenna (MIMO) for the 2.4GHz band.
The unit enables communication at a real speed of up to 150 Mb/s.

Yes ther advantage is, in addition to the high transmission speed thanks to the 802.11n standard, the use of TDMA time multiplex, which allows more than 300 clients to connect to the unit in AP mode and low latency.
Compared to its predecessor, the NanoStation 2 Loco has a stronger processor clocked at 400MHz and a larger memory.

SPECIFICATIONS
Frequency (MHz): 2412-2462
Standards: 802.11b/g/n
Maximum transmission speed: 300 Mb/s

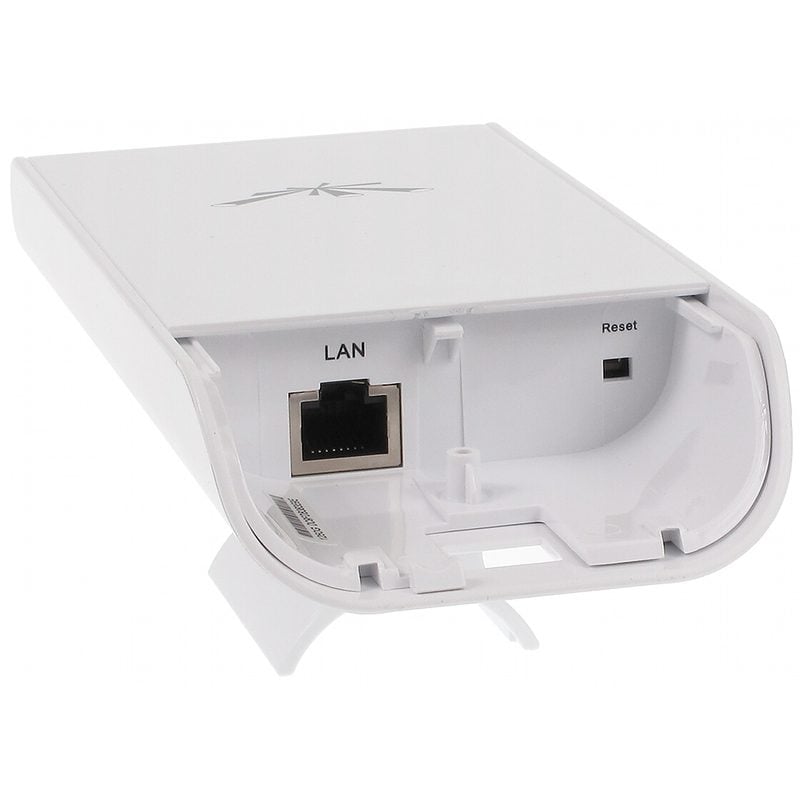

LAN port: 1x RJ45 10/100Mbps
Power supply: 24V (PoE only)
Wireless operating modes: AP, Client, WDS
Operating modes: Bridge, NAT
DHCP server/client: Yes/Yes
External antenna output: No
Encryption: WPA, WPA2
Minimum Sensitivity: -96
Operating temperature: -30 to 75°C
Power regulation: Yes
Max. output power: 23dBm
Number of antennas: 2
Beam angle H/V: 60°/60°
Antenna gain: 8dBi
Airmax: Yes
Chipset: Atheros
Processor: MIPS 24KC, 400MHz
RAM: 32MB
NAND: 8MB
Weight: 180g
Operating system: AirOS
IPv6 support: Transparent (bridge mode)
Default IP: 192.168.1.20
Default username/password: Ubiquiti/Ubiquiti
Outdoor use: Yes

Package contents:

• device

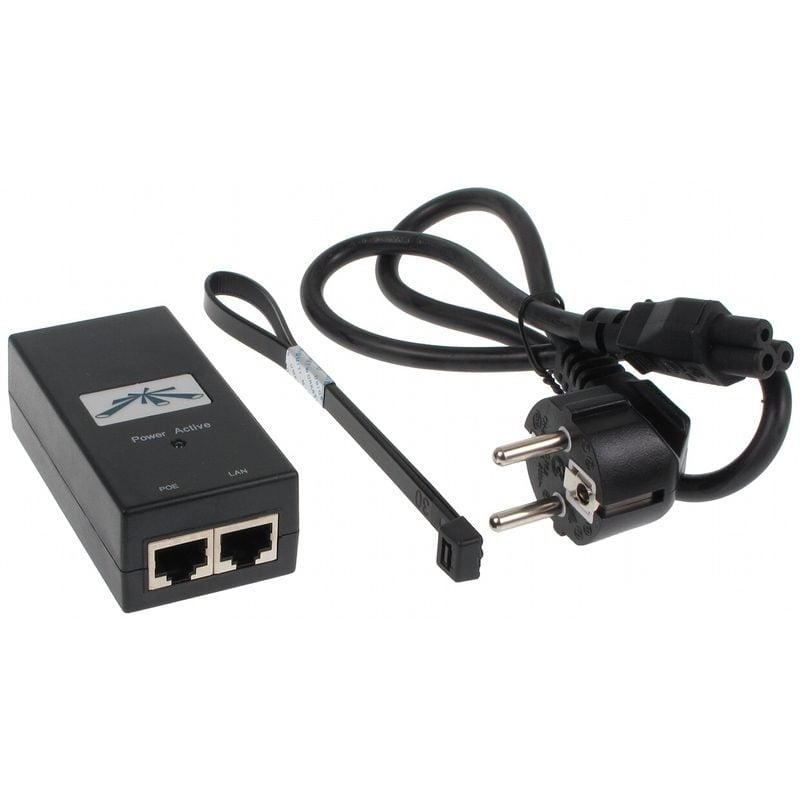

• PoE psu
• power cable
• manual
• strapping tape
