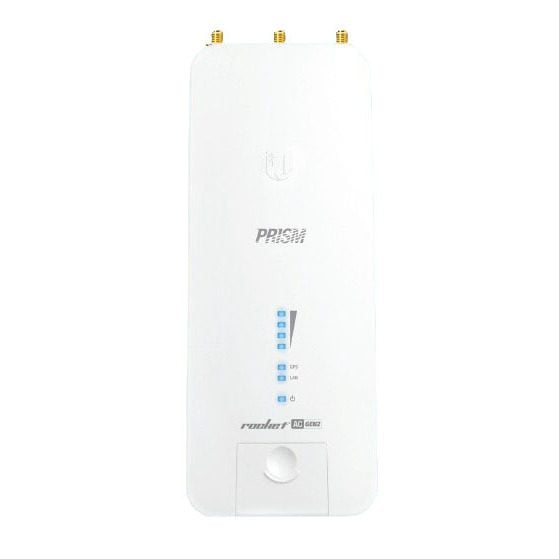

Ubiquiti RP-5AC-Gen2 - Rocket5 AC PRISM Gen2, outdoor, 5GHz AC, airPrism

The second generation Rocket Prism 5AC units cover the entire 5GHz spectrum and combine airMAX ac and airPrism technologies for maximum wireless performance in noisy areas. In addition, it has improved ESD protection against atmospheric influences.

Wi-Fi Radio Management

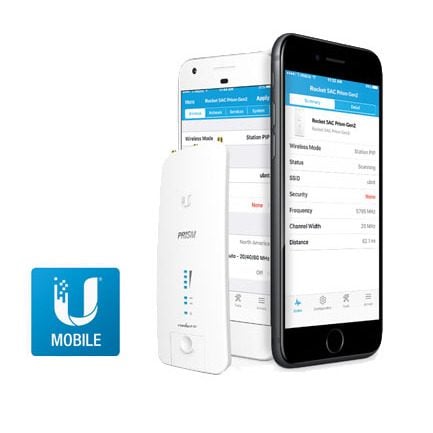

New to the airMAX ac GEN2 products is an integrated 2.4GHz radio, which is used to set up the radio using your mobile device.
This is what the UMOBILE application is for, which is free to download for both iOS and Android platforms.

Revolutionary filtering technology
Patented airPrism technology provides breakthrough selectivity in the unlicensed band. AirPrism isolates the signal of the selected channel and thus increases throughput even in a noisy environment.

Designed for high performance
The electronics of the Rocket Prism 5AC GEN2 unit is stored in a shielded metal housing, has a GPS synchronization function, an airPrism chip and, using the airView function, provides the possibility of online evaluation of the use and interference of the band in a given location.

Now with airOS 8
The airMAX ac GEN2 units are powered by airOS 8, which provides many useful functions, such as displaying the constellation diagram or the SNR value.

Technical parameters

Wireless features
Sensitivity [dBm]: -96
Frequency range [MHz]: 5150-5875
Wireless frequency [GHz]: 5
WiFi transmission speed - 2.4GHz [Mb/s]: 150
WiFi transmission speed - 5GHz [Mb/s]: 866
WiFi standards: airMAX ac
5GHz transmit power [dBm]: 28
Encryption: WPA2 AES
5GHz OUT: 2x2
Antenna type: Detachable
Number of removable antennas: 2

Physical characteristics
Use: Outdoor
Buttons: Reset
Operating temperature [°C]: -40 to 80
Weight [g]: 400
Depth [mm]: 40
Width [mm]: 88
Height [mm]: 230

Hardware
RAM size [MB]: 128
CPU: Atheros MIPS 74KC

Connectors and interfaces
LAN Speeds: (1) 10/100/1000Mbps
Gigabit LAN: Yes
GPS module: Yes

Power supply
Max. power consumption [W]: 9.5
Power supply via PoE: 24V DC
PoE types: Input
