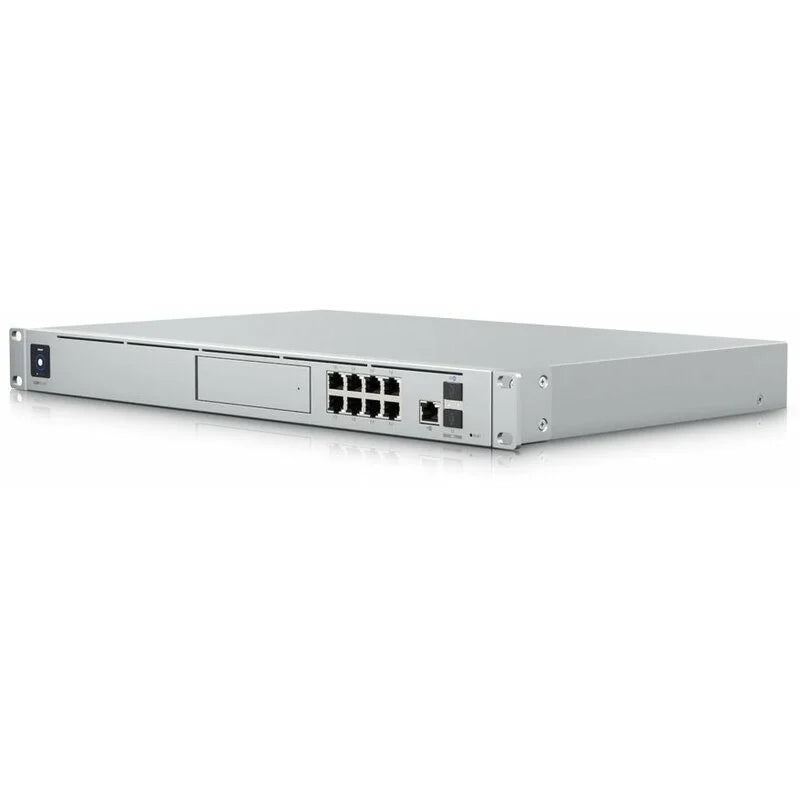

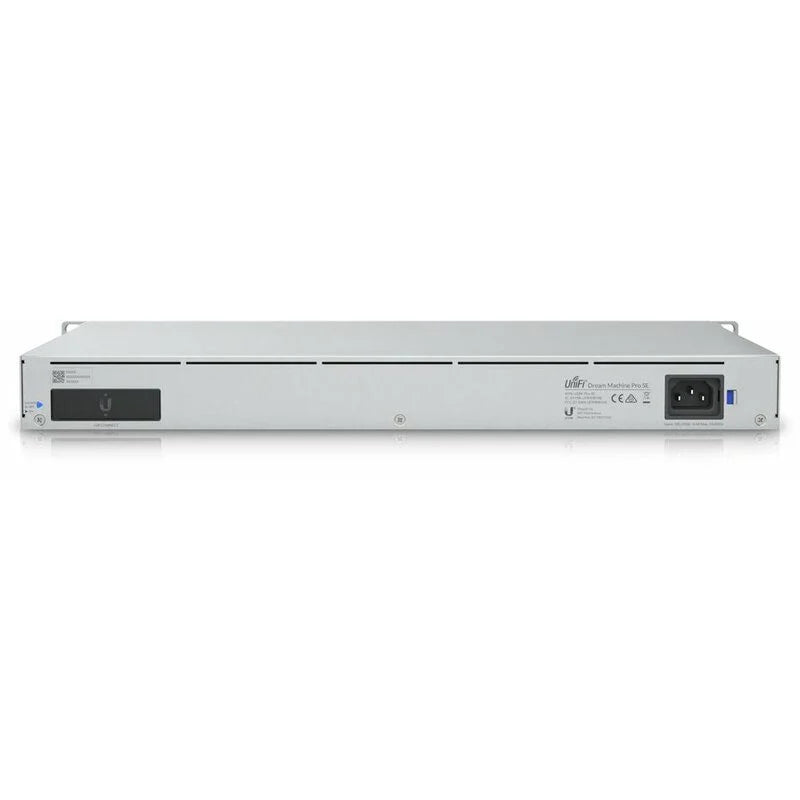

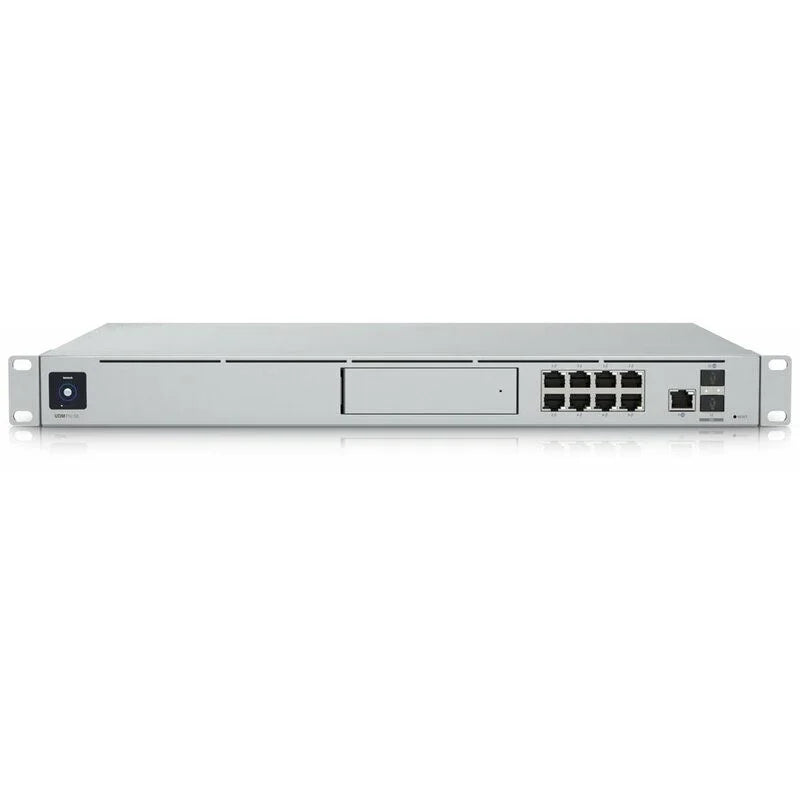

UniFi Dream Machine Special Edition from Ubiquiti Networks is an all-in-one network solution for small and medium-sized companies.
It is a very powerful 1U device in a 19" rack and combines the following features:
Manageable 8-port Gigabit PoE Switch with one SFP/SFP+ port and VLAN support
(6) 802.3af (max. 15.4W/port) + (2) 802.3at (max. 30W/port)
Multiple WAN option via 2.5-Gigabit Ethernet or SFP/SFP+ port
USG - UniFi Security Gateway or Router with advanced IDS/IPS and DPI functions
UniFi Network application
UniFi Video - an empty 3.5" HDD slot is used to store recordings from cameras
Support for backup power using the SmartPower connector
1.3" touch screen for current network status monitoring
Very high performance
The UniFi Dream Machine Special Edition offers significantly higher performance than the previous generation UniFi Security Gateway. The device is equipped with a 4-core ARM Cortex-A57 CPU clocked at 1.7GHz, 4GB RAM and 16GB eMMC internal storage.
With such equipment, the throughput test using iPerf3 showed a respectable 3.5 Gb/s.
Advantages of the UniFi solution
- Zero Handoff Roaming - uninterrupted transition between individual APs
- Wireless uplink (suitable where it is not possible to get a data cable)
- up to 4 SSIDs
- detailed traffic statistics
- Guest network
- Load balance - maintaining an even load/switching of clients
- rate limiting for each SSID
Package contents
- device
- mounts for 19" rack
- power cable
Technical parameters
Connectors and interfaces
Number of WAN ports: 1
WAN Speeds: (1) 100/1000/2500Mbps
Number of HDD slots: 1
Multiple WAN option: Yes
LAN speed: (8) 10/100/1000Mbps
Gigabit LAN: Yes
Optical interface: (2) 1G/10Gbps
Others: Touch screen, Bluetooth
Power supply
Redundant power supply: Yes
Power type: From the mains (230V), UniFi SmartPower RPS
Supported PoE-Out standards: 802.3af, 802.3at
Number of PoE Out ports: 8
PoE budget [W]: 150
Max. power consumption [W]: 50
Power supply via connector/terminal block: 230V AC
Physical characteristics
Design: Rackmount
Buttons: Reset
Operating temperature [°C]: -10 to 40
Weight [g]: 4950
Width [mm]: 442
Height [mm]: 44
Depth [mm]: 286
Hardware
CPU: ARM Cortex-A57
CPU frequency [MHz]: 1700
Number of CPU cores: 4
Internal storage [MB]: 128GB
RAM [MB]: 4096
| LAN max. Speed [Mb/s] | 2500 mb/s |
|---|---|
| Optical | Yes |
| Low Profile | No |
| LAN ports | 8 |
| POE | Yes |
|---|---|
| 3G / 4G / LTE modem | No |
| Application | Internal |
| Nr. of pcs in package | 1 |
|---|---|
| Weight (kg) | 5.668 |
| Dimensions (cm) | 41.5x52.3x12.5 |
| Width(cm) | 41.5 |
|---|---|
| Height(cm) | 52.3 |
| Length (cm) | 12.5 |
