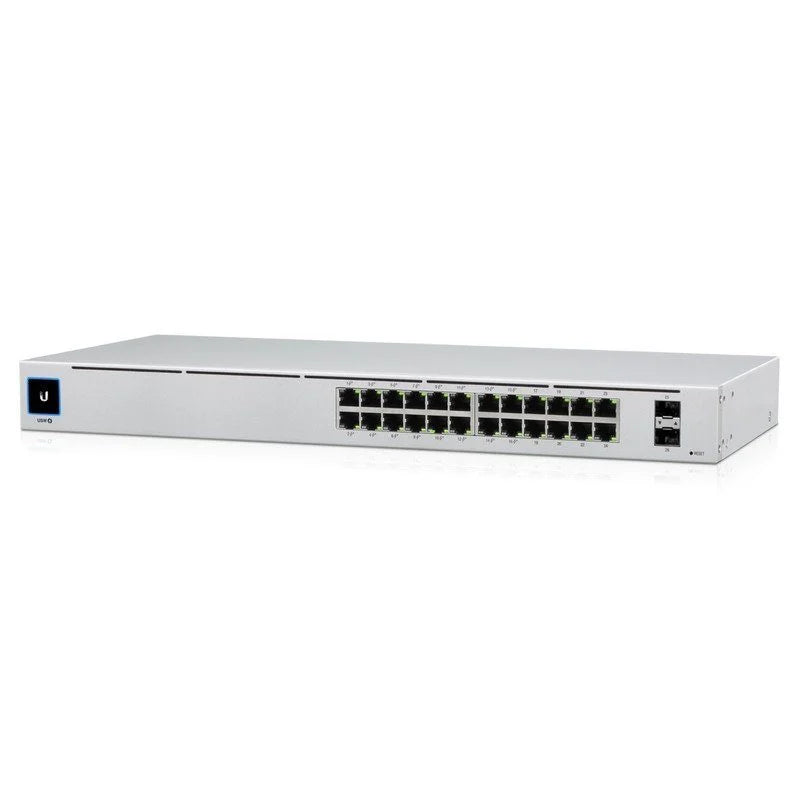

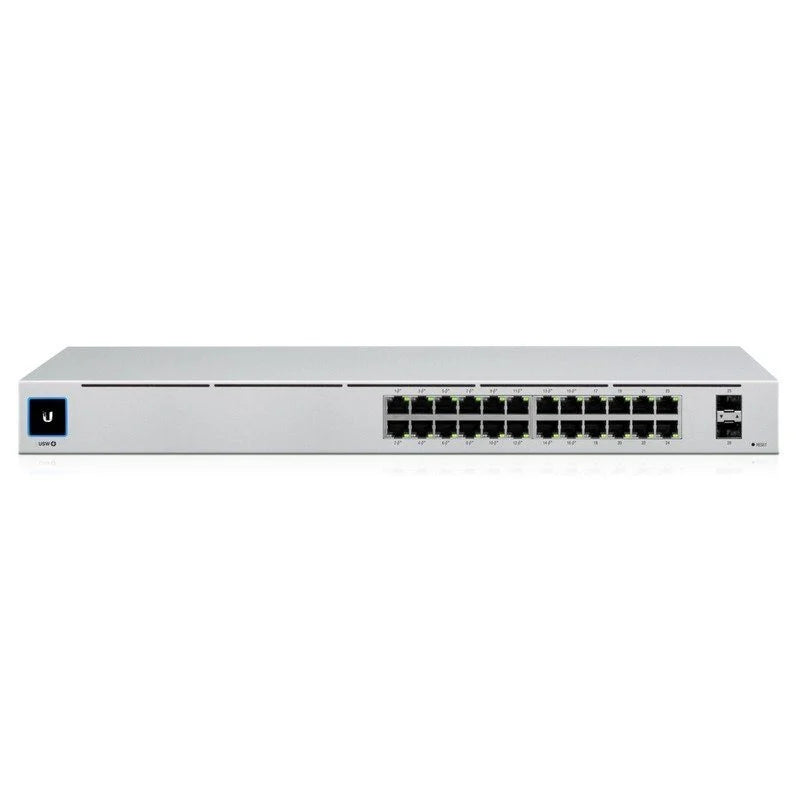

Ubiquiti USW-24-POE, UniFi Switch Standard 24 PoE

USW-24-POE is a manageable Gigabit L2 switch with 24x Gigabit LAN ports, of which 16 ports support 802.3af/at PoE-Out, a total PoE budget of 95W and two SFP ports with a maximum transmission speed of 1Gb/s.
In addition to the standard equipment, the Switch also has a 1.3" touchscreen to provide system information, temperature, port statistics, PoE power and much more.
With a very small depth of only 20cm, this fanless switch can be easily installed in any 19" data cabinet.

Management via the UniFi Network application
The USW-24-POE, a managed and configured UniFi Network Controller with support for UniFi mobile applications, offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port. The UniFi Network Controller and mobile app allow administrators to configure and monitor virtually all switch functions in a graphical user interface from anywhere.

Package contents

• device
• power cable
• mounts up to 19 rack

Technical parameters

Connectors and interfaces
LAN speed: (24) 10/100/1000Mbps
Optical interface: (2) 1000Mbps

Other: Touch screen

Power supply
Power supply type: From the mains (230V)
PoE types: PoE-Out (only)
Supported PoE-Out standards: 802.3af, 802.3at
Number of PoE Out ports: 16
PoE budget [W]: 95
Max. power consumption [W]: 25
Power supply via connector/terminal block: 230V AC

Physical characteristics
Design: Rackmount
Fans: No fan
Chassis: Metal
Operating temperature [°C]: -5 to 40
Width [mm]: 442
Height [mm]: 44
Depth [mm]: 200

In general
Switching speed [Gbps]: 52
MAC address table: 16000
Packet forwarding rate [Mpps]:38.69
