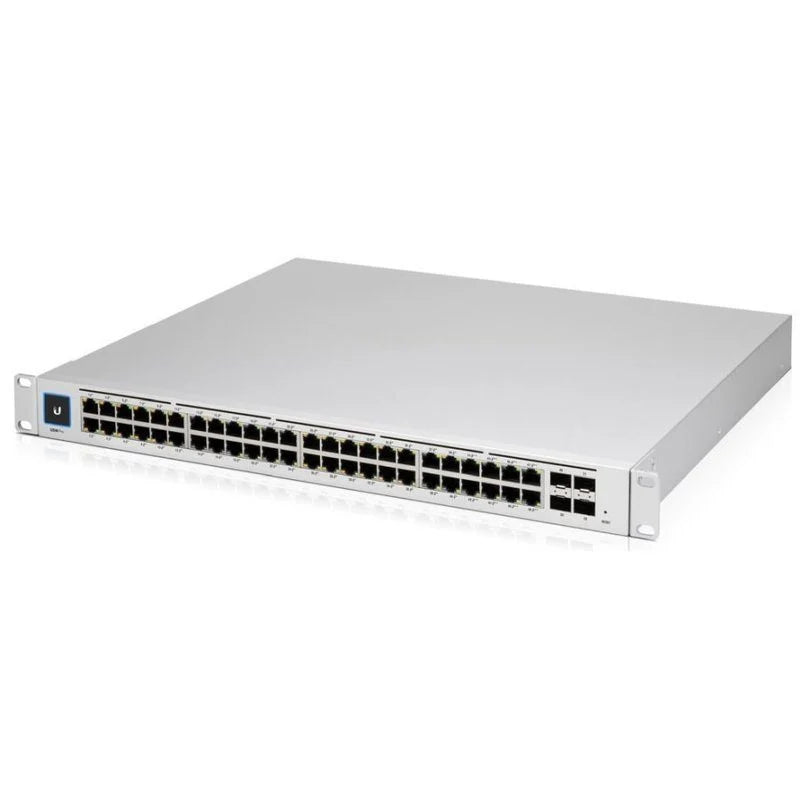

Ubiquiti USW-48-POE UniFi Switch 48 PoE

USW-48-POE is a manageable Gigabit L2 switch with 48x Gigabit LAN ports, of which 32 ports support 802.3af/at PoE-Out, a total PoE Budget of 195W and four SFP ports with a maximum transmission speed of 1Gb/s.
In addition to the standard equipment, the Switch also has a 1.3" touchscreen to provide system information, temperature, port statistics, PoE power and much more.

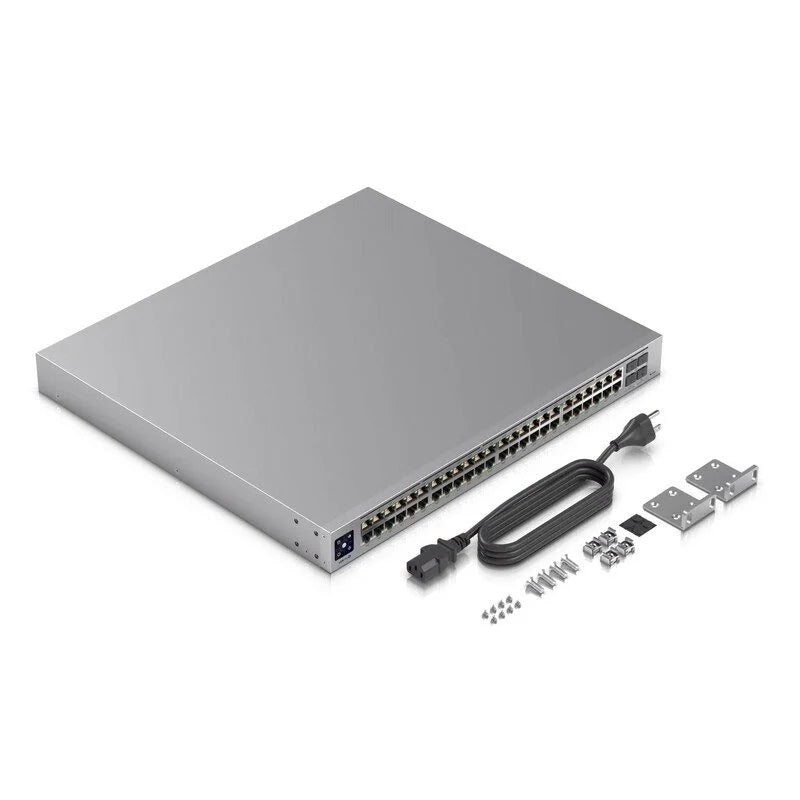

Package contents

• device
• power cable
• mounts for 19" rack

Technical parameters

Connectors and interfaces
LAN speed: (48) 10/100/1000Mbps
Optical interface: (4) 1000Mbps

Other: Touch screen

Power supply
Power supply type: From the mains (230V)
PoE types: PoE-Out (only)
Supported PoE-Out standards: 802.3af, 802.3at
Number of PoE Out ports: 32
PoE budget [W]: 195
Max. power consumption [W]: 45
Power supply via connector/terminal block: 230V AC

Physical characteristics
Design: Rackmount
Fans: (2) 40x40mm
Chassis: Metal
Operating temperature [°C]: -5 to 40
Width [mm]: 442
Height [mm]: 44
Depth [mm]: 285

In general
Switching speed [Gbps]: 104
MAC address table: 16000
Jumbo frame [Bytes]: 9000
