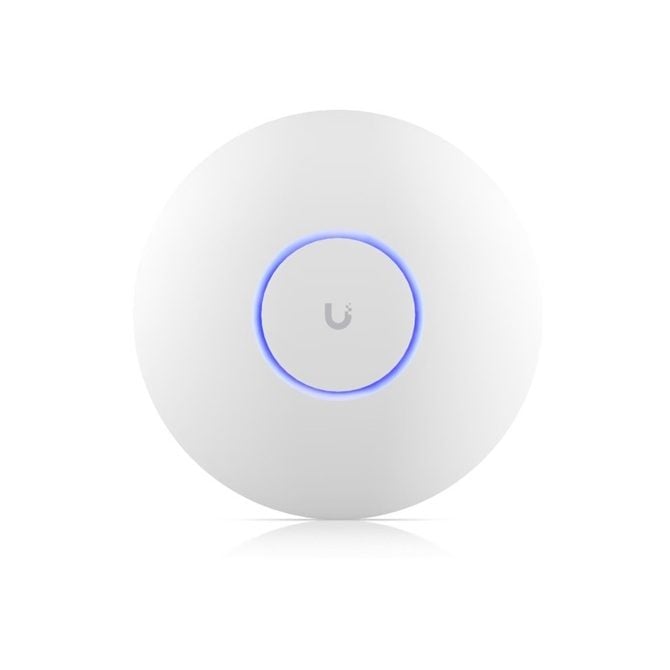

Ubiquiti U6-PRO - UniFi 6 Pro

The UniFi Access Point WiFi 6 Pro (U6-Pro) is a high-performance Dual-band WiFi 6 Access Point and is ideal for home and office use.
The U6-Pro is capable of achieving great throughputs - in the 5GHz band (4x4 MU-MIMO) it is 4800Mb/s when used with 160MHz bandwidth and in 2.4GHz (2x2MIMO) it is 573.5Mb/s, allowing it to support more than 300 simultaneously connected clients.
Thanks to its unobtrusive design, it fits into any environment and, due to its IP54 protection, it can be used partly outdoors in addition to indoor installations.
The Access Point has Gigabit Ethernet with support for active PoE (802.3at) as well as passive 44 to 57V PoE.

Key features

• Dual-band WiFi 6, support 802.11a/b/g/n/ac/ax
• 5GHz throughput up to 4800Mbps (4x4 MU-MIMO)
• 2.4GHz throughput up to 573.5Mbps (2x2 MIMO)
• Antenna gain - 2.4GHz (4dBi), 5GHz (6dBi)
• WPA/WPA2/WPA3 encryption
• Gigabit LAN port
• power supply via 802.3af or passive 44 to 57V PoE, consumption 13W
• Protection class IP54 (can be mounted indoors and partially outdoors)
• supported by UniFi Network application from version 6.0.45
• central unit control

To manage the device, you need to download the original UniFi Network application software from the official website, which allows you to manage the entire network.
The undisputed advantage of the UniFi Network application is that it is completely free without any restrictions!
This central management will allow you to upload maps and set basic parameters and advanced functions such as SSID, guest account, home page, traffic statistics, and the list and status of associated clients, always easily and quickly.

Advantages of UniFi solutions

• Fast Roaming - seamless transition between individual APs
• Wireless uplink (useful where it is not possible to get a data cable)
• up to 8 SSIDs
• detailed traffic statistics
• Guest network
• Load balance - maintaining an even load/switching clients
• speed limiting for each SSID

Package contents

• device
• ceiling/wall mounting kit
• set of screws

Technical parameters

Wireless features
Wireless frequencies: 2.4 + 5GHz (dual band)
WiFi standards: 802.11ac, 802.11ax, 802.11n, 802.11a, 802.11b/g
MU-MIMO: Yes
Transmission speed - 5GHz [Mbps]: 4804
Transmission speed - 2.4GHz [Mbps]: 574
2.4GHz transmission power [dBm]: 22
5GHz transmission power [dBm]: 26
Encryption: WPA, WPA2, WPA3
2.4GHz MIMO: 2x2
5GHz MIMO: 4x4
Antenna type: Built-in
Number of built-in antennas: 6
Roaming: Yes

Connectors and interfaces
LAN speed: (1) 10/100/1000Mbps
Gigabit LAN: Yes

Power supply
Power supply via PoE: 802.3at, 44 .. 57V DC
PoE Types: PoE-In (only)
Max power consumption [W]: 13

Physical characteristics
Protection level: IP54
Usage: Indoor
Buttons: Reset
Operating temperature [°C]: -30 to 60
Weight [g]: 580 (device), 720 (with holder)
Width [mm]: 197
Height [mm]: 35
Depth [mm]: 197
