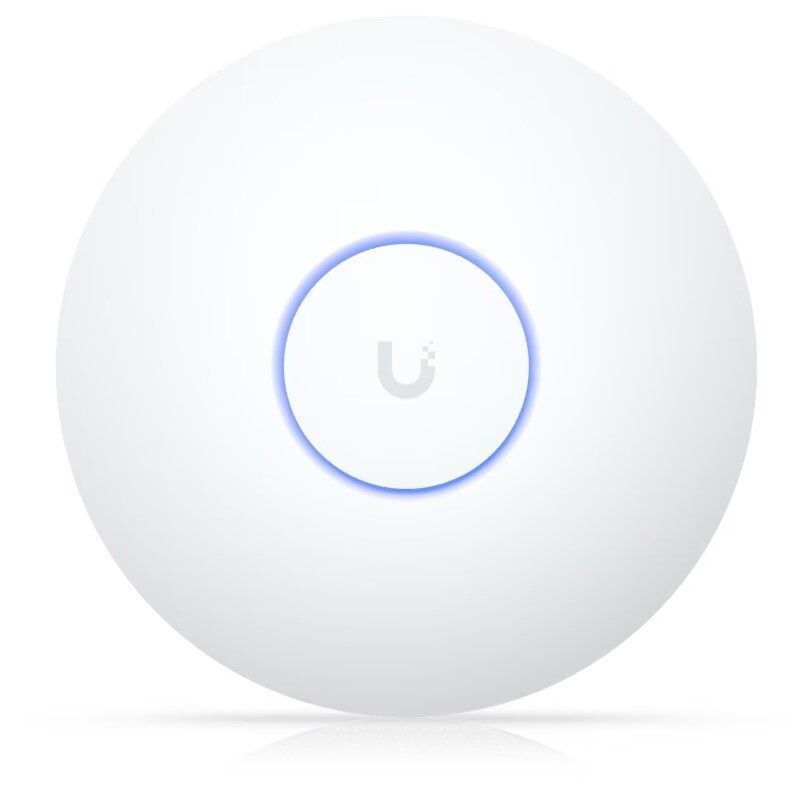

Ubiquiti U7-LR, UniFi AP U7 Long-Range

Compact, ceiling-mounted WiFi 7 AP with 5 spatial streams and extended signal range.

Parameters:

• WiFi standard: WiFi 7
• Power supply method: PoE
• Spatial streams: 5
• Coverage area: 160 m2 (1,750 ft2)
• Max. number of clients: 300+
• Max. consumption: 14W
• Power supply range: 42.5—57V DC
• Interface: (1) 2.5GbE RJ45 port

OUTSIDE:

• 5GHz: 3x3 (DL/UL MU-MIMO)
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data rates:

• 5GHz: 4.3Gbps (BW160)
• 2.4GHz: 688Mbps (BW40)

Max. TX Power:

• 5GHz: 27dBm
• 2.4GHz: 26dBm

Antenna gain:

• 5GHz: 6dBi
• 2.4GHz: 4dBi

Supported data rates:

• 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
• 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
• 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
• 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
