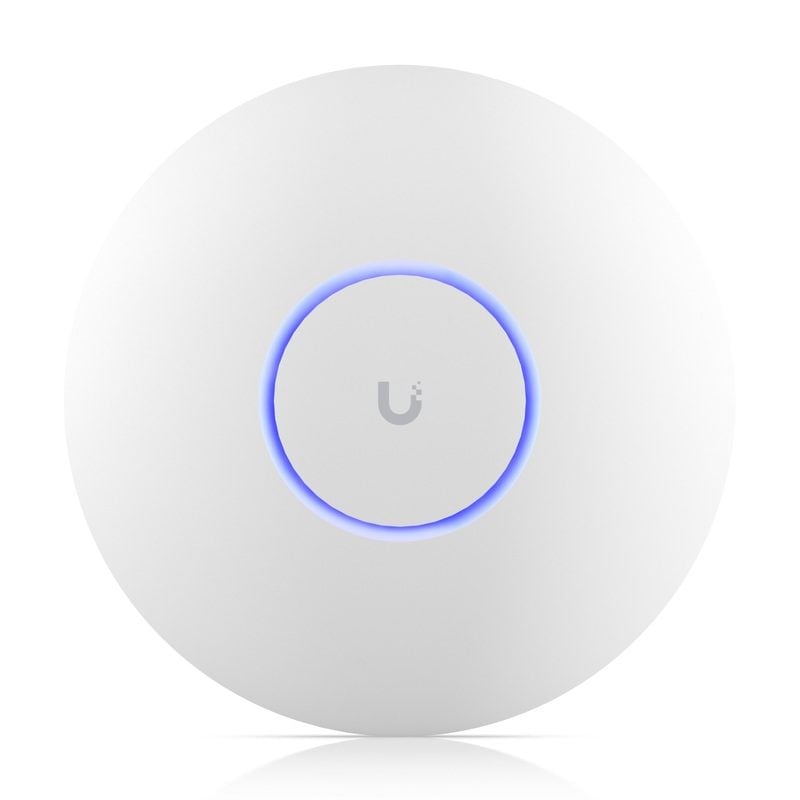

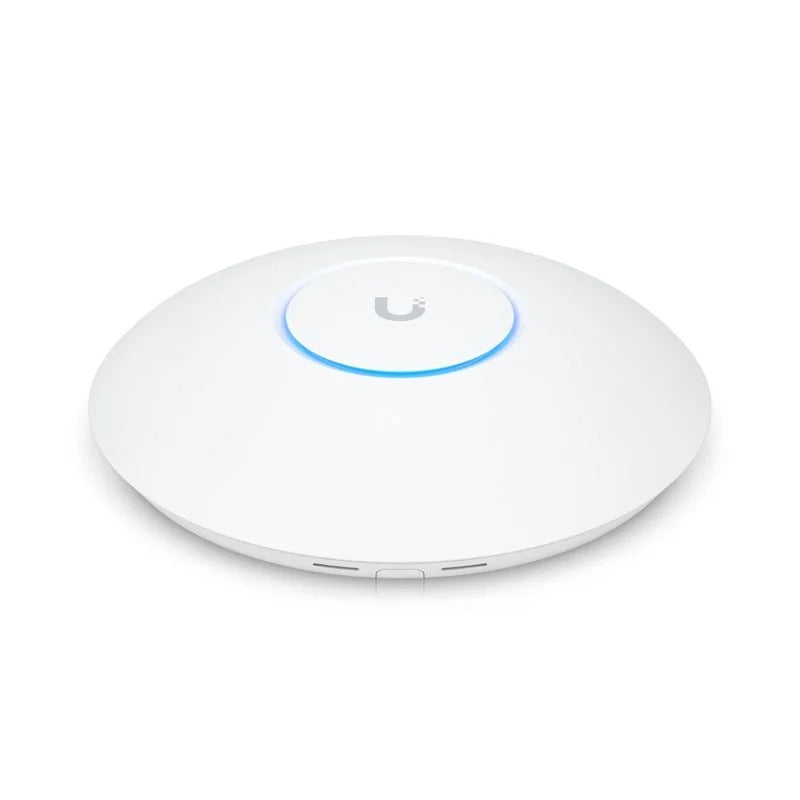

Ubiquiti U7-Pro - UniFi7 AP U7 Pro

UniFi U7 Pro - access point
ceiling WiFi 7 AP with 6GHz support for a corporate wireless network

• WiFi 7 tri-radio with 6GHz
• 2x2 MIMO in all 3 bands
• coverage up to 140m2
• more than 300 connected devices
• powered by PoE+
• speed limit per user

Technical parameters
Wireless frequencies: 2.4 + 5 + 6GHz (triple band)
WiFi standards: 802.11a/b/g/n/ac/ax/be
Bandwidth (2.4; 5; 6GHz): 688Mb/s; 2882Mb/s; 5765Mb/s
Transmission power (2.4; 5; 6GHz): 22dBm; 26dBm; 23dBm
Antenna gain (2.4; 5; 6GHz): 4dBi; 6dBi; 5.8dBi
Antenna type: built-in
Number of built-in antennas: 2
Encryption: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

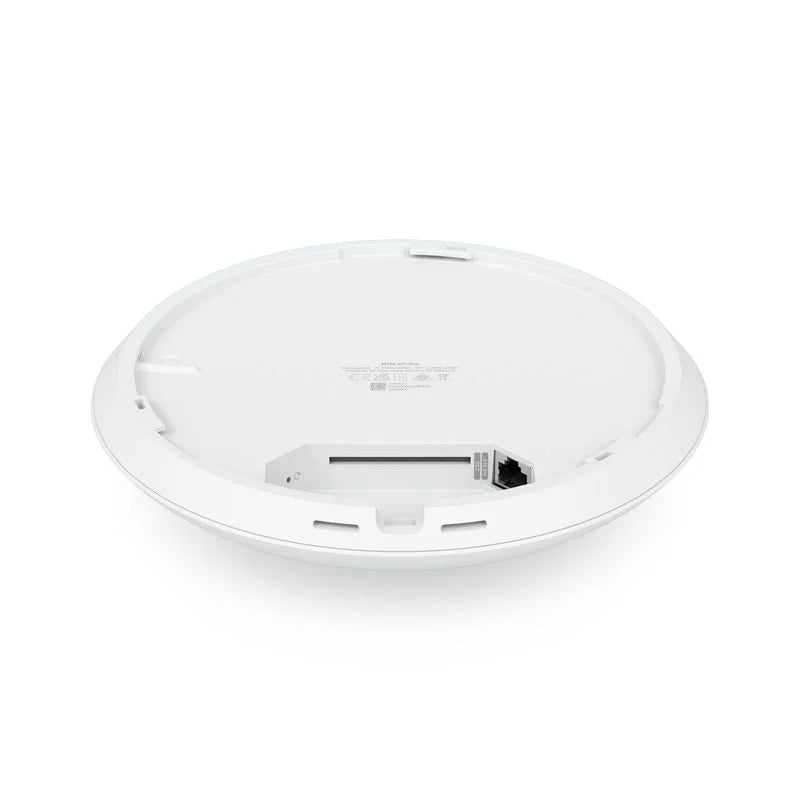

Network interfaces: 1x 1/2.5GbE RJ45 port
Management interface: Ethernet
Power supply method: PoE+
Power supply via PoE: 44-57V DC
PoE types: PoE-In (only)
Max. power consumption: 21W
Use: internal
Dimensions: 206x206x46mm
Weight: 680g

Package contents:

• U7 Pro
• ceiling/wall mounting kit
• set of screws and dowels
