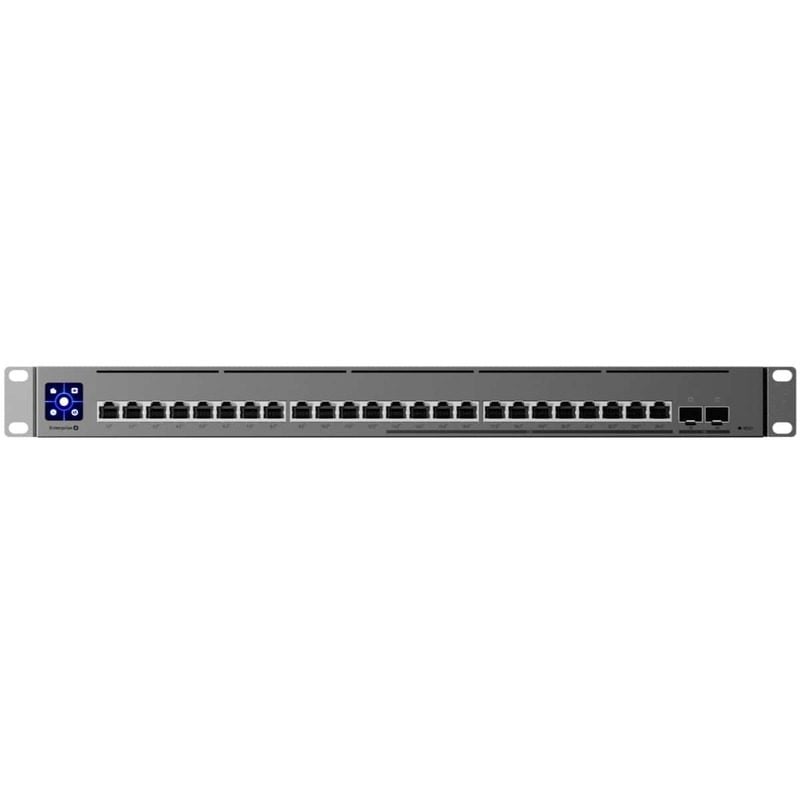

Ubiquiti USW-Enterprise-24-PoE

UniFi Switch Enterprise 24 PoE is a reliable manageable 2.5-Gigabit L3 Switch with 124Gb/s switching capacity, (12) 2.5-Gigabit LAN ports, additional (12) Gigabit LAN ports and two SFP+ (10Gb/s) bays.
All Ethernet ports support 802.3af/at PoE-Out with an output power of 30W/port and a total PoE Budget of 400W. In addition to the standard equipment, the Switch also has a 1.3" touchscreen to provide system information, temperature, port statistics, PoE power and much more.
The switch can be powered via 230V as standard, but also via UniFi SmartPower RPS, which is used more for power backup in caseof failure of the internal psu.

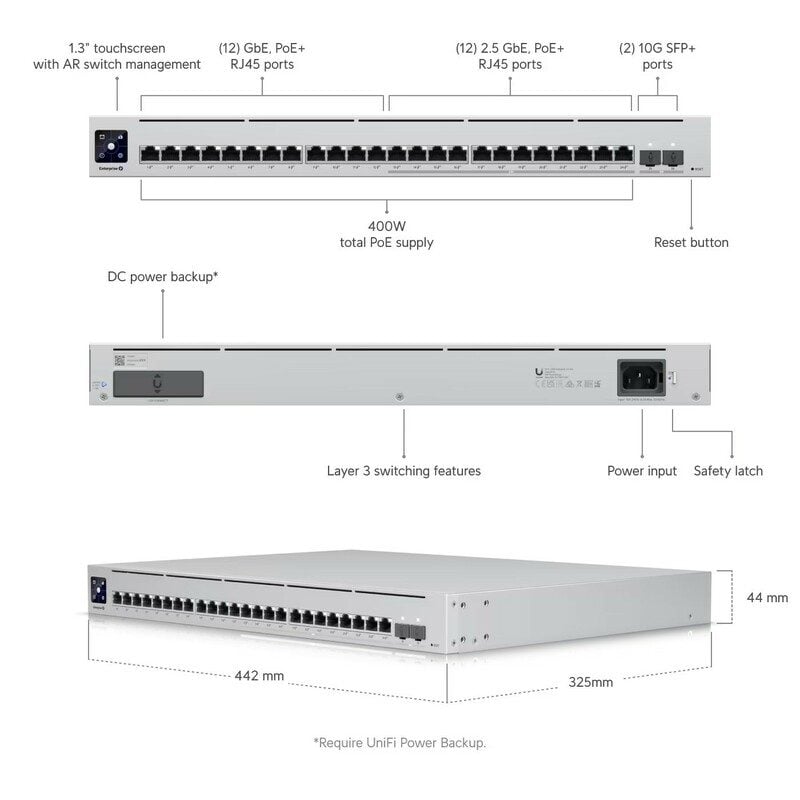

Key properties

(12) 100M/1G/2.5G ports - support 802.3af/at PoE+ (30W/port)
(12) 10/100M/1G ports - support 802.3af/at PoE+ (30W/port)
(2) 1/10G SFP+ ports
400W PoE budget
1.3" touch screen
Backup power via SmartPower RPS connector
Supported in UniFi Network application since version 5.14.12
Management via the UniFi Network application

The USW-Enterprise-24-PoE does not have web-based management, but is managed centrally by the UniFi Network application with support for the UniFi mobile application, and offers an extensive set of advanced switching protocols and L2 functions, including operating mode (switching, mirroring or aggregation) per port.

The UniFi Network Controller and mobile app allow administrators to configure and monitor virtually all switch functions in a graphical user interface from anywhere.

Redundant power supply
This generation of switches supports redundant power supply via a special connector to the UniFi SmartPower unit in caseof failure of the primary psu at the switch.

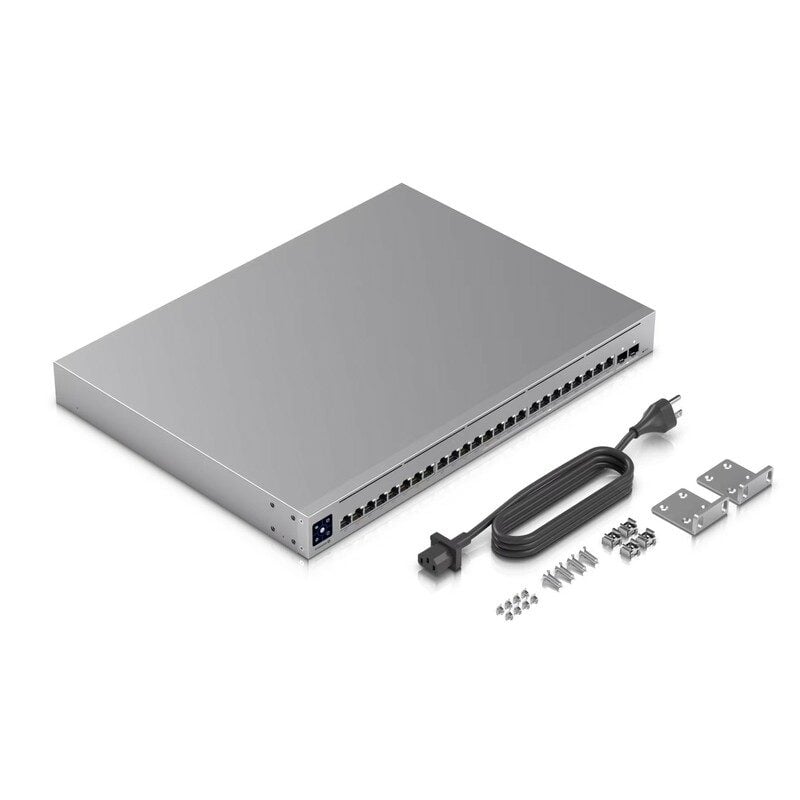

Package contents

• device
• power cable
• mounts for 19" rack

Technical parameters

Connectors and interfaces
LAN speed: (12) 100/1000/2500Mbps + (12)10/100/1000Mbps
Optical interface: (2) 1G/10Gbps

Other: Touch screen

Power supply
Redundant power supply: Yes
Power type: From the mains (230V), UniFi SmartPower RPS
PoE types: PoE-Out (only)
Supported PoE-Out standards: 802.3af, 802.3at
Number of PoE Out ports: 24
PoE budget [W]: 400
Max. power consumption [W]: 550
Power supply via connector/terminal block: 230V AC

Physical characteristics
Design: Rackmount
Fans: No fan
Chassis: Metal
Operating temperature [°C]: -5 to 40
Width [mm]: 442
Height [mm]: 44
Depth [mm]: 325

In general
Switching speed [Gbps]: 124
MAC address table: 16000
Packet Transfer Rate [Mpps]: 92.2
