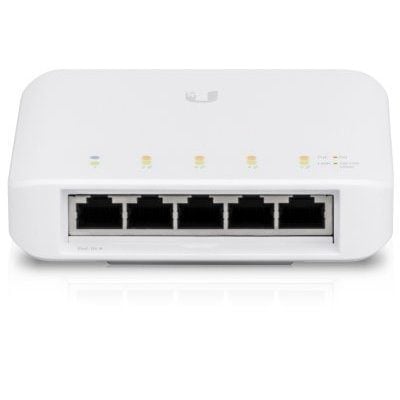

Ubiquiti USW-FLEX - UniFi Switch Flex

USW-FLEX is a 5-port outdoor Gigabit switch with the possibility of PoE-In and PoE-Out on 4 ports.
The switch enables active 802.3af type power on the output ports, which gives a total of 15.4W on each mport.

Universal assembly
The USW-Flex can be installed horizontally or vertically, making it ideal for flat surface, magnetic wall and/or pole mounting.

Indoor/outdoor design
USW-Flex is designed for indoor or outdoor use. With a weatherproof housing and versatile mounting options, the USW-Flex provides flexibility and resistance to environments with extreme temperature changes.

Seamless integration
A single UniFi controller instance running in the cloud can manage multiple UniFi networks within a centralized interface. Each network is logically separated and has its own network monitoring, configuration, maps, statistics and administrator accounts.

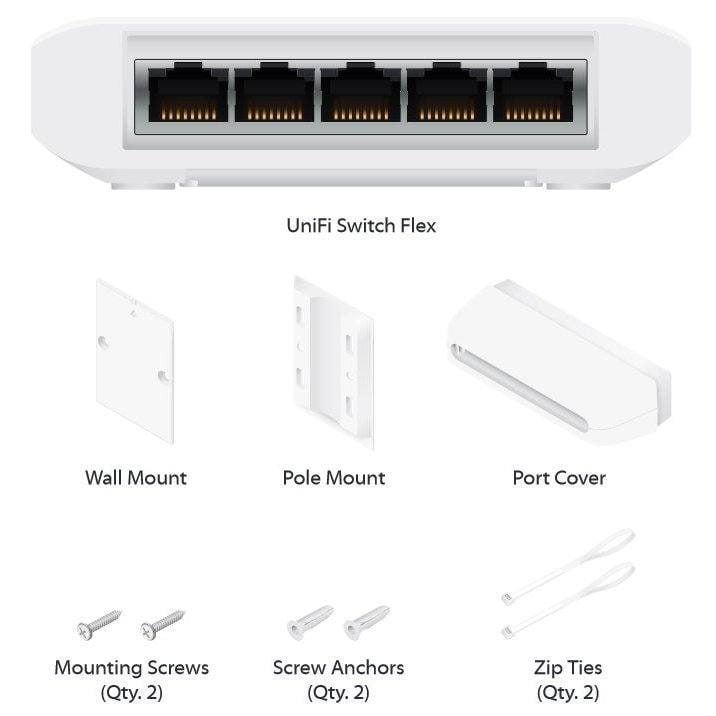

Package contents

• device
• mast holder
• cable cover
• magnetic holder for metal
• screws + dowels
• (2) duct tape

Technical parameters
Physical characteristics
Design: Outdoor
Chassis: Plastic
Buttons: Reset
Operating temperature [°C]: -40 to 65
Depth [mm]: 107
Width [mm]: 123
Height [mm]: 28

Connectors and interfaces
LAN Speeds: (5) 10/100/1000Mbps

Power supply
Max. power consumption [W]: 5
Power supply via PoE: 802.3bt, 802.3af, 802.3at, 44.. 57V DC
Power type: PoE
PoE types: PoE-Out + PoE-In
PoE Out (Ports 2-5): 802.3at (Pins 1, 2+; 3, 6-)
Maximum PoE power per port: 25 W
Number of PoE Out ports: 4
PoE budget [W]: 46
