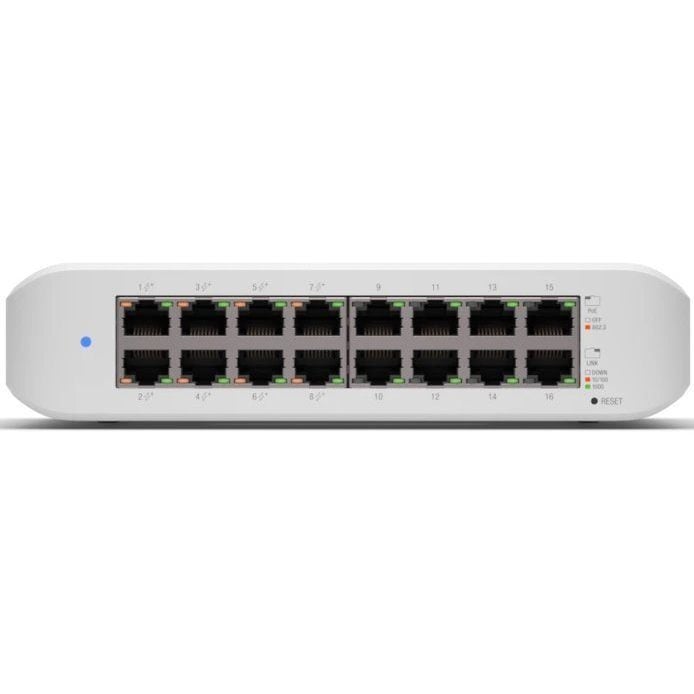

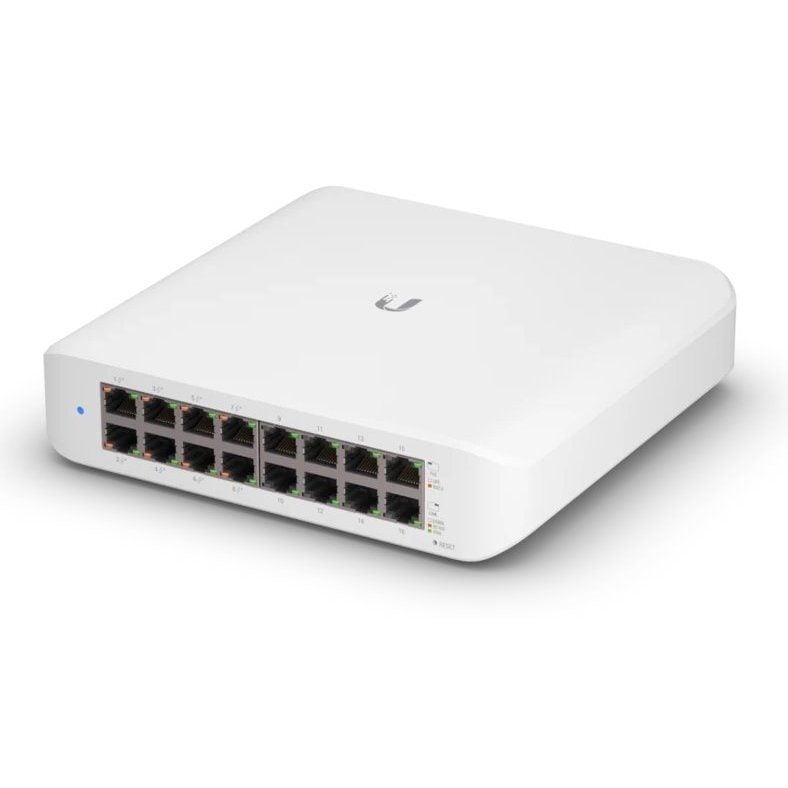

Ubiquiti USW-Lite-16-PoE

USW-Lite-16-PoE is a Gigabit PoE L2 Switch from Ubiquiti in a desktop version with a maximum PoE budget of 45W. A manageable switch with 16 Gigabit metal ports and a total throughput of 16 Gb/s.
Only 8 ports out of 16 support PoE power supply 802.3af/at with a maximum power of 30W/port.
Due to the low PoE budget, the Switch is more suitable as a data-powered pair of devices at the edge of the network.

Management via UniFi Network application
The fundamental difference between the switches of the UniFiSwitch series and the EdgeSwitch series is in management - the WebGUI management of EdgeSwitch switches is replaced by the UniFi Network application in UniFiSwitch models.

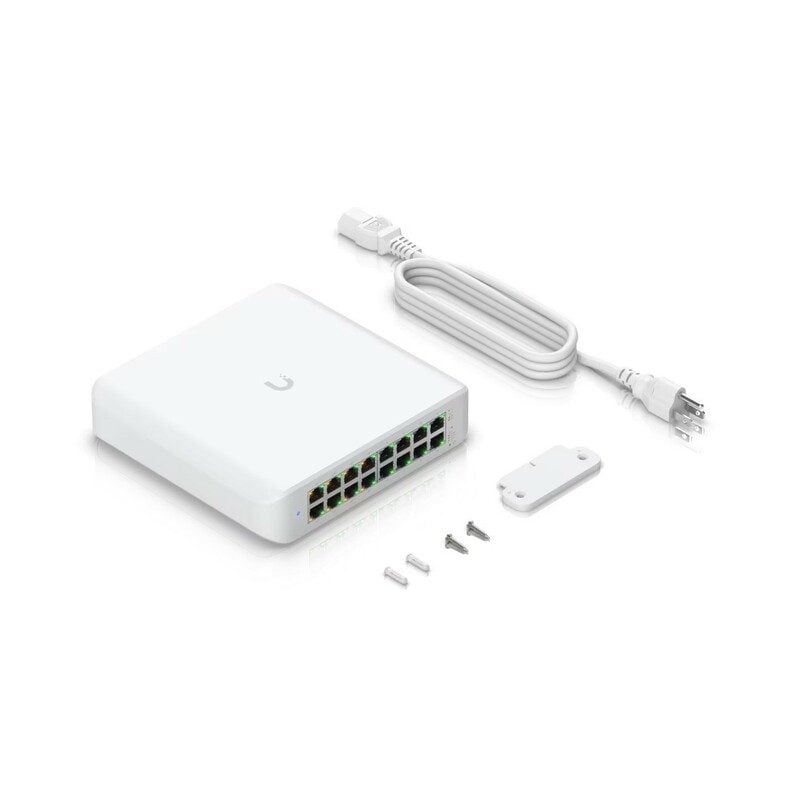

Package contents

• device
• power cable

Technical parameters

Physical characteristics
Version: Desktop
Fans: No fan
Chassis: Plastic
Buttons: Reset
Operating temperature [°C]: -15 to 40
Depth [mm]: 185
Width [mm]: 192
Height [mm]: 44

Connectors and interfaces
LAN Speeds: (16) 10/100/1000Mbps

Power supply

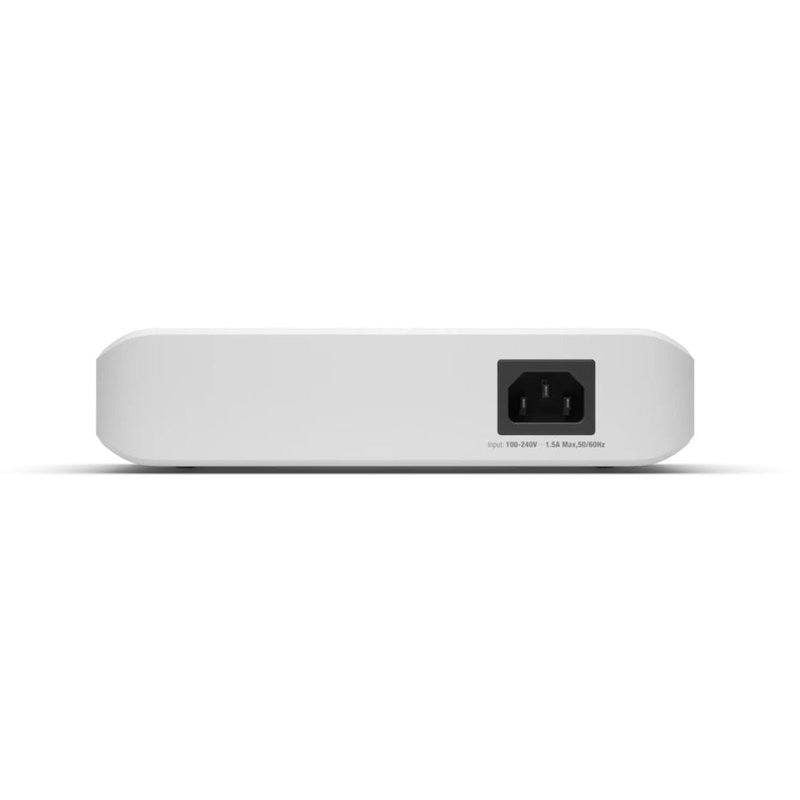

Power supply type: From the mains (230V)
PoE types: PoE-Out (only)
Supported PoE-Out standards: 802.3af, 802.3at
Number of PoE Out ports: 8
PoE budget [W]: 45
Max. power consumption [W]: 15
Power supply via connector/terminal block: 230V AC
