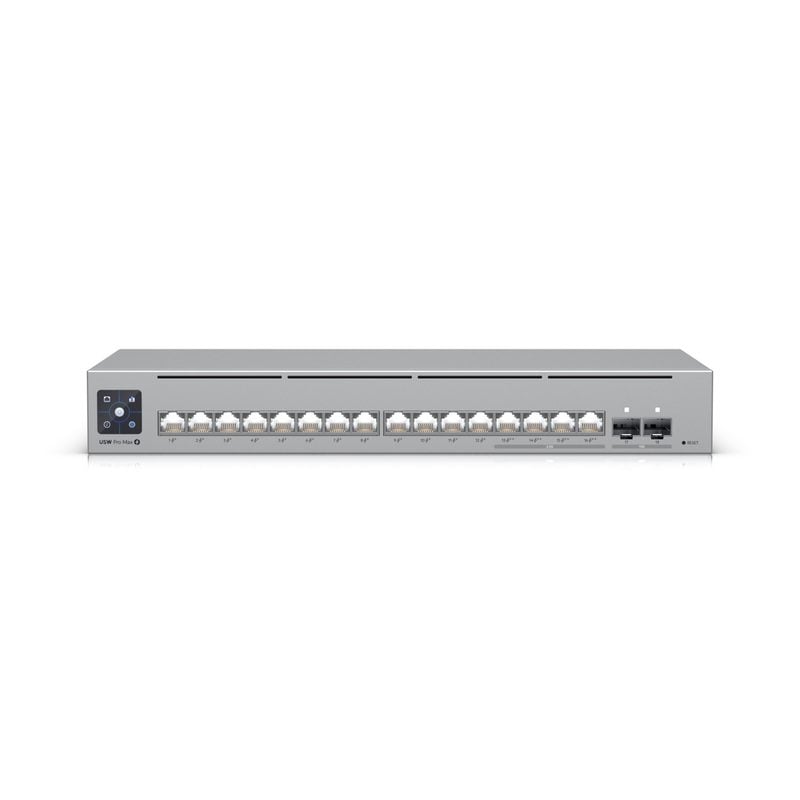

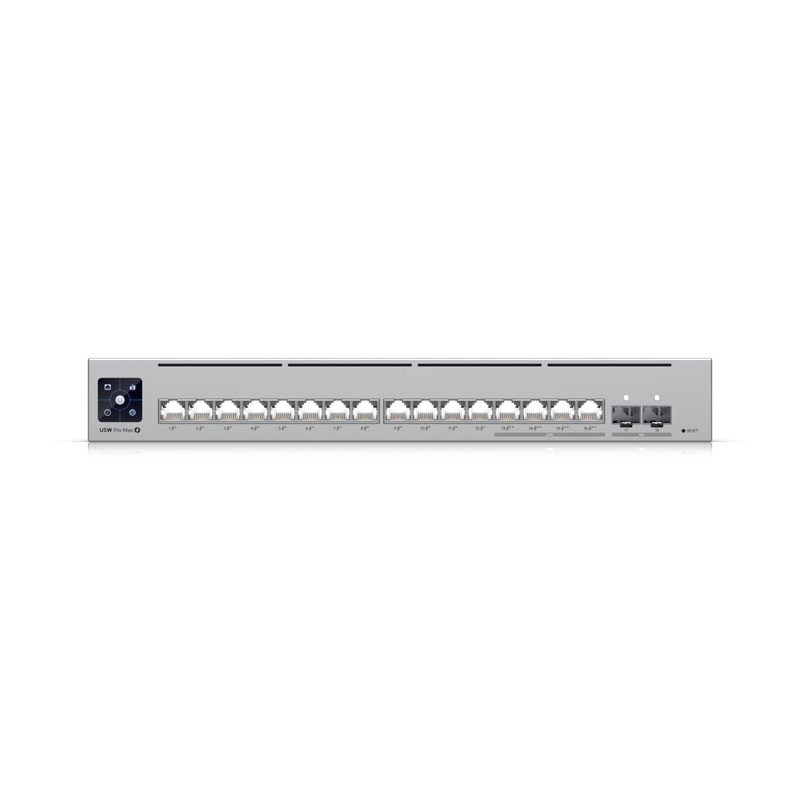

Ubiquiti USW-Pro-Max-16-PoE, UniFi Switch Pro Max 16 PoE

The Ubiquiti USW-Pro-Max-16-PoE delivers enterprise-grade switching performance with 16 Gigabit PoE ports, enabling seamless network expansion and device powering through a single cable. Built for high-density deployments, this managed switch features advanced traffic management, VLAN support, and comprehensive monitoring capabilities. Ideal for growing networks requiring reliable connectivity and simplified infrastructure management across multiple access points and IoT devices.

UniFi Pro Max 16 PoE
16-port Layer 3 Etherlighting™ switch with 2.5GbE PoE++ output

• Etherlighting™ - backlit ports that indicate port location, speed/link and native VLAN/network
• quiet cooling system without a fan

Technical parameters
Network interface:

• 4x 2.5GbE PoE++ RJ45
• 12x GbE RJ45
• 2x 10G SFP+

PoE interface:

• 12x PoE/PoE+ (pins 1, 2+; 3, 6-)
• 4x 60W PoE++ (pair A 1, 2+; 3, 6-) (pair B 4, 5+; 7, 8-)

Management interface: Ethernet In-Band
Switch capacity: 84 Gb/s
Total non-blocking throughput: 42Gb/s
Max. power consumption: 30W (without PoE output)
Operating temperature: -5 to 40°C
LCM display: 1.3" touch
Power supply: DC adapter, 54v, 210W
Total PoE availability: 180W
Max. PoE power per port from PSE:

• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W

PoE mode voltage range:

• PoE: 44—57V
• PoE+/PoE++: 50—57V

Dimensions: 325.1x160x43.7mm
Weight: 2.1 kg
