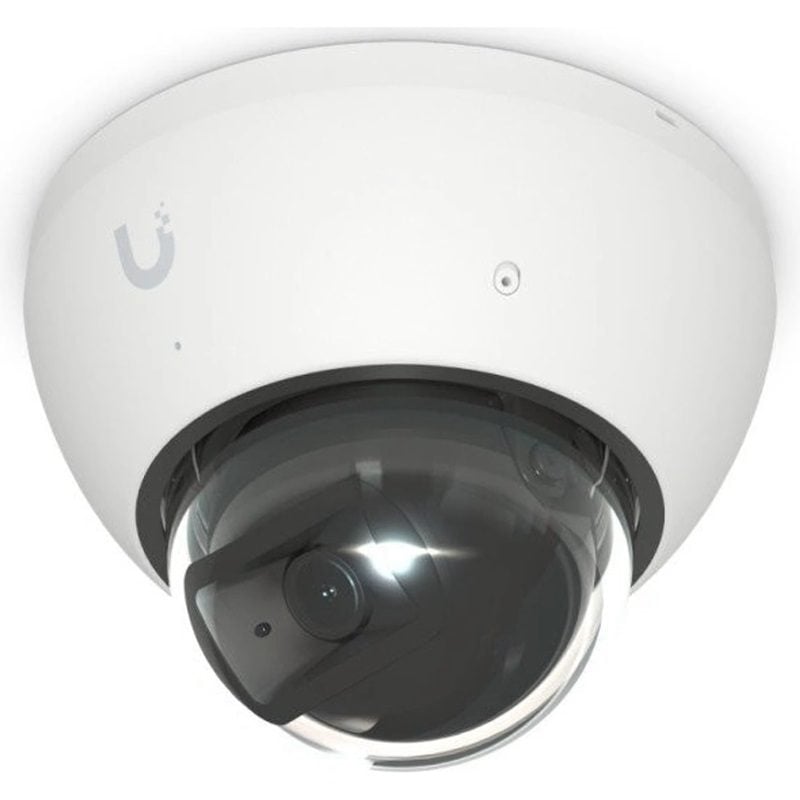

Ubiquiti UVC-AI-Dome-W - UniFi Protect Camera AI Dome white

Outdoor 4K PoE Dome camera with advanced AI for person and license plate recognition, long-range IR night vision and weather protection.
The camera shoots 8 Mpx video (3840 x 2160) at 30 frames per second with a fixed 2.8mm lens.

Key features

• 4K (8MP) resolution
• Field of view - 109.9° horizontal, 134.1° diagonal, 56.7° vertical
• Built-in IR LEDs and automatic IR cut filter for better night vision (40m)
• IP66 waterproof + IK10 resistance (anti-vandal)
• Power supply via PoE (42.5-57V DC)
• MicroSD card support (minimum 64 GB)

Technical parameters

Camera - optics
Lens type: fixed
Lens [mm]: 2.8 (fixed)
Illumination: IR
Illumination range [m]: 40
Viewing angle [°]: horizontal 109.9 (H: 56.7, D: 134.1)
Day/night mode: built-in IR LED illumination and IR cut filter
Image Sensor ["]: 1/1.8 (8MP)
Lens: fixed focal length

Resolution: 8MP
Max. resolution [pixels]: 3840x2160 (16:9)
Max frame rate: 30 FPS
Image settings: color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, motion NR, masking, text overlay, HDR
LEDs: R/G/B/W

System
Processor: quad-core chip based on Arm Cortex-A53
Network interface: GbE RJ-45 port

Connectors and interfaces
Audio:

• microphone (can be turned off)
• speaker: no

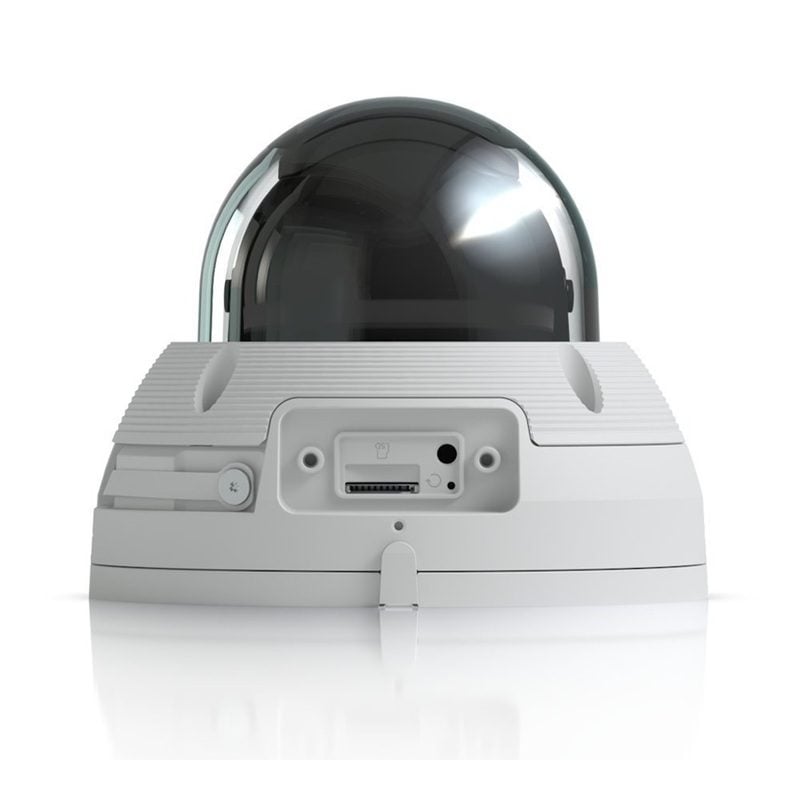

Memory card slot: microSD

Power supply
Power supply via PoE: voltage range 42.5–57V DC
Power type: PoE
Max power consumption [W]: 10

Physical characteristics
Protection level: IP66
Use: outdoor
Anti-vandal (impact protection): IK10
Operating temperature [°C]: -30 to 50
Operating humidity: 10 to 90% non-condensing
Weight [g]: 700
Width [mm]: 118
Height [mm]: 90.8
Depth [mm]: 118
Color: white
Cable length [mm]:300
Cable diameter [mm]: 4.5
Cable connector type: RJ-45
Mounting: ceiling, arm, wall, pendant, distribution cabinet
